Beyond the Sketch

A sketch with one loop() function works well as long as everything it does finishes quickly and nothing needs to happen at a precise moment while something else is busy. A single sensor read, a single LED blink, a single serial print: these fit comfortably inside one pass of the loop. The trouble starts when a project needs several of these behaviors running on different schedules at the same time. A sketch that reads a sensor every second, debounces a button, and occasionally uploads data over Wi-Fi is really three separate jobs squeezed into one thread of execution, and the loop has to interleave them by hand.

The usual way this interleaving gets handled in Arduino code is with millis() comparisons scattered through the loop, each one guarding a different piece of timed behavior. This works for two or three timers. It becomes fragile once there are five or six, especially when one of them depends on the outcome of another. The code ends up full of boolean flags that mean something like the sensor read finished but the upload has not started yet, and tracking what state the system is actually in requires reading the whole file rather than one function.

Blocking calls make the problem worse. A library function that waits for a sensor to respond, or a network call that blocks until a server replies, freezes the entire loop while it runs. Nothing else in the sketch executes during that window, including the button-debouncing logic or the display refresh. If that blocking call occasionally takes a few hundred milliseconds longer than expected, perhaps because a Wi-Fi access point is briefly busy, every other part of the sketch stalls with it. Hobbyists often experience this as a display freezing for a moment or a button press being silently dropped.

Interrupts complicate matters further. A common pattern is to attach an interrupt to a button or sensor pin and set a flag inside the interrupt handler, which the loop checks later. This is reasonable in isolation. But once a sketch has several interrupts, several timers, and several blocking library calls layered together, reasoning about which flag gets set when, and whether the loop reaches it in time, becomes genuinely difficult. Bugs appear that depend on timing rather than logic, which makes them resist the usual process of reading the code line by line to find the mistake.

None of this means the underlying hardware is incapable. The ESP32 chip running that sketch has more than enough processing power and memory to manage several independent jobs cleanly. The limitation is the single-loop structure itself, which forces genuinely separate responsibilities to share one thread and take turns through manual bookkeeping. The chip was never actually idle between loop iterations; the Arduino core had already set up a FreeRTOS task to run that loop, among other background tasks handling Wi-Fi and system housekeeping. The sketch was running on a real multitasking operating system the entire time, just without exposing that structure to the programmer.

Consider a concrete version of this problem: a soil moisture sensor that should be read every ten seconds, a status LED that should blink in a distinct pattern when moisture is low, and a Wi-Fi upload that should happen every five minutes. Written as a single loop, the upload routine's blocking network call can easily eat into the ten-second sensor interval, causing late or skipped readings exactly when the upload is running. Written as separate tasks communicating through a queue, the sensor task keeps its own schedule regardless of what the network task is doing, because the operating system gives each task its own turn independent of the others.

This is the real shift this book is about: not abandoning the hardware or the sensors you already know how to wire, but exposing the task structure that was always underneath the sketch and learning to design with it directly. Once tasks are explicit, each piece of timed behavior gets its own independent schedule instead of fighting for space inside one loop. A later chapter walks through creating FreeRTOS tasks and choosing how they share the chip, which is the direct answer to the scaling problem described here.

There is also a debugging benefit that is easy to underestimate before you have felt the alternative. When one task handles sensor reading and a separate task handles networking, a slow or failing network call shows up clearly as a problem inside the networking task, rather than as a mysterious stutter somewhere in a shared loop. The failure is contained to the piece of code responsible for it. This containment is one of the most practical reasons experienced embedded developers organize firmware around tasks rather than a single flow of control, and it pays off most on the day something actually breaks in the field.

Sketches also tend to hide how much work the environment does for you by default. The Arduino core typically configures Wi-Fi, allocates buffers, and starts background tasks using fixed assumptions that fit a wide range of beginner projects, but become limiting or opaque once a project has specific memory, timing, or power requirements. A sketch that quietly works fine at three sensors might start failing mysteriously at six, not because of a logic error but because background allocations and task priorities were never designed with that scale in mind.

Memory is a particularly common failure point as sketches grow. Each task, including the hidden ones running underneath the Arduino loop, consumes its own stack space, and global buffers for things like Wi-Fi and string handling add up. A sketch that runs out of memory can fail in strange ways: random resets, corrupted data, or crashes that only happen under specific conditions, like a certain sensor value combined with an active network connection. Diagnosing this kind of failure is far easier once you can see and size tasks explicitly, rather than trusting defaults you never configured.

Power behavior is another place where the single-loop model quietly works against you. A battery-powered sensor node needs to spend most of its life asleep, waking briefly to measure and transmit before sleeping again. Building that duty cycle cleanly on top of a loop designed to run continuously is awkward at best. Sleep and wake behavior are first-class concerns in ESP-IDF, with dedicated mechanisms for choosing wake sources and managing what survives sleep, covered later in the chapters on deep sleep and duty cycle design.

None of these limitations mean Arduino sketches are a mistake to start with. They are a genuinely good way to learn wiring, sensor libraries, and the basic shape of embedded code, and most of that knowledge transfers directly. The limitation is structural, not educational: a single loop cannot cleanly express several independent, differently timed responsibilities once a project grows past a certain size. Recognizing that boundary, rather than fighting it with more flags and more millis() checks, is the signal that it is time to work with the operating system directly instead of around it.

The chapters ahead treat that operating system as the foundation rather than an obstacle. Tasks, queues, interrupts handled safely, peripherals read deliberately, and power managed through explicit sleep cycles: each of these replaces a pattern that sketches handle by convention and workaround. The next subchapter looks at what ESP-IDF specifically hands you once you commit to building this way, and how its pieces fit together.

ESP-IDF is Espressif's own development framework for ESP32-family chips, and it is the same framework the Arduino core for ESP32 is built on top of. That relationship matters: switching to ESP-IDF is not switching to unfamiliar hardware or an unofficial third-party tool. It is dropping down one layer, to the framework that was already running underneath every sketch, where more of its structure and configuration are exposed directly to you instead of preset on your behalf.

At the center of that framework sits FreeRTOS, a real-time operating system that manages tasks, scheduling, and the communication primitives tasks use to coordinate. Where a sketch has one loop, an ESP-IDF application is typically organized as several FreeRTOS tasks, each with its own job, its own stack, and its own priority relative to the others. The scheduler decides which task runs when, based on priority and readiness, which is exactly the mechanism a future chapter walks through when it covers creating tasks and assigning priorities and core affinity.

Tasks on their own would just be isolated islands of code unless they could pass information between each other safely. ESP-IDF, through FreeRTOS, provides queues for passing data from one task to another, software timers for scheduling periodic work without blocking a task, and synchronization tools like semaphores, mutexes, and event groups for coordinating access to shared resources or signaling that something happened. These replace the global flags and shared variables that sketches lean on, with mechanisms designed specifically to be safe when multiple tasks touch them at once.

Below the operating system layer, ESP-IDF organizes code into components, which are self-contained units of functionality with their own source files, headers, and build configuration. A project is built from a tree of components, some written by you and some provided by Espressif or the community, and the build system assembles them according to each component's declared dependencies. This is a more deliberate structure than a sketch folder with a handful of tabs, and it scales much better once a project includes drivers, networking code, and application logic that would otherwise blur together.

The build system itself is based on CMake, with Ninja commonly used as the underlying build tool, and both are driven through a command-line tool called idf.py that handles configuring, building, flashing, and monitoring a project without requiring direct CMake commands for everyday work. A configuration menu built on Kconfig lets you adjust settings, from stack sizes to peripheral options, and those choices are stored in a project's sdkconfig file. A dedicated chapter walks through installing this toolchain and understanding how these pieces, CMake, Ninja, and idf.py, fit together in practice.

Startup in an ESP-IDF application is also more visible than in a sketch. Instead of the Arduino core quietly calling your setup() and loop() functions for you, ESP-IDF calls a function named app_main after the bootloader and system startup code have run. What happens between power-on and that first line of your code, including how the bootloader finds your application in flash and how flash itself is divided using a partition table, is covered directly in the chapter on application anatomy and startup flow. Seeing that sequence explicitly removes a layer of mystery that Arduino intentionally hides from beginners.

Peripheral access follows the same pattern of exposing more and assuming less. ESP-IDF provides drivers for GPIO, I2C, SPI, UART, and the ADC, each with its own configuration structures and function calls rather than a single simplified library call. This means more lines of setup code than analogRead() or digitalWrite(), but also far more control over exactly how a pin or bus behaves, which matters once a project depends on precise timing or specific electrical behavior that a simplified wrapper would hide.

Interrupt handling in ESP-IDF follows a stricter discipline than many Arduino examples encourage. Interrupt service routines are expected to do as little as possible and hand real work off to a task, using mechanisms covered in the chapter on deferring work from interrupts to tasks. This discipline exists because blocking operations or heavy logic inside an interrupt handler can corrupt timing throughout the whole system, not just within the code that triggered the interrupt. ESP-IDF's structure makes that boundary explicit rather than leaving it to convention.

Networking is built in as well, with support for Wi-Fi station mode, an HTTP client for sending data to a server, and ESP-MQTT for publishing telemetry to an MQTT broker, a common pattern for sensor devices reporting readings at intervals. One structural detail worth flagging early: as of ESP-IDF 6.0, ESP-MQTT moved out of the main ESP-IDF repository into its own separate component^[1], a reminder that networking and other features can shift between repositories and releases, which is exactly why checking documentation for your specific version matters more here than it did with a stable Arduino library.

Low-power behavior is treated as a designed feature rather than an add-on. ESP-IDF exposes light sleep and deep sleep modes along with a set of wake sources, letting a device sleep between measurements and wake only when needed, whether on a timer or an external signal. Designing a sensor node's wake, measure, transmit, and sleep cycle around these tools, and estimating how long it can run on a battery, is the focus of the chapter on deep sleep and duty cycle design. This kind of fine-grained power control simply has no equivalent in a basic Arduino sketch.

Diagnostics are also built into the framework rather than left to ad hoc print statements. ESP-IDF supports configurable log levels and log tags so you can control how much detail different parts of your code report, along with support for a debugger through OpenOCD, core dumps for inspecting the state of a crash after the fact, and watchdog timers that catch a task or the whole system getting stuck. These tools, covered in the chapter on debugging and logging, turn failures from mysteries into events you can actually inspect.

Finally, ESP-IDF supports over-the-air updates through a defined partition scheme, including a dedicated OTA data partition and rollback handling that can revert to a previous working firmware image if a new one fails. This matters enormously for any device that will be mounted somewhere inconvenient once deployed, since it means firmware can be updated remotely rather than requiring a cable and physical access. The chapter on OTA updates covers how that partition layout and rollback safety need to be planned from the start, not added after a device has already shipped.

Taken together, these pieces explain why ESP-IDF feels like more work at first: it exposes decisions that Arduino made for you by default, and most of those decisions genuinely matter once a project grows past a hobby scale. The framework's own documentation is also a moving target worth respecting, since features and defaults change between releases, such as the CMake build system v2 that is currently marked a technical preview in the ESP-IDF documentation^[2] rather than a finished, stable feature. Checking documentation against the specific version installed is a habit worth building early, and it is one the next subchapter returns to directly.

The chapters ahead are ordered deliberately, moving from the build system and application structure, through multitasking, peripherals, and networking, to low-power design, debugging, and field updates, ending with a complete battery-powered sensor node that draws on everything before it. Reading in order makes sense for anyone working through the material for the first time, since later chapters assume the vocabulary and structure introduced earlier, particularly the task-based mindset built in the FreeRTOS chapters. That said, the book is also built to serve as a reference once a specific project raises a specific question.

If a current project has already hit a wall, it is reasonable to jump straight to the relevant chapter. Someone fighting with interrupt-driven bugs can go directly to the chapters on GPIO, interrupts, and deferred work, while someone trying to stretch battery life on an existing design can start with deep sleep and duty cycle design. The peripheral chapters on I2C, SPI, UART, and ADC are similarly self-contained enough to consult independently once the task and queue concepts from earlier chapters are familiar, since sensor code in ESP-IDF is usually written inside a task that communicates its results onward through a queue.

Each chapter is built around the idea that a concept only sticks once you have seen it applied, not just defined. Expect worked examples with real code, step-by-step procedures for tasks like configuring a peripheral or setting up a partition table, and checklists for things that are easy to get wrong, such as interrupt service routine design or partition layout before an OTA-capable device ships. Where a concept has more than one defensible approach, such as choosing between a queue and an event group for a given coordination problem, the trade-offs are laid out directly rather than picking one option silently.

Short quizzes and exercises appear at points where testing your own understanding matters more than reading further explanation. These are meant to be used, not skipped. A quiz question about task priorities or a short exercise configuring a GPIO interrupt takes a few minutes and catches gaps in understanding before they turn into a confusing bug three chapters later, when the underlying concept gets built on rather than re-explained.

Hardware specifics deserve a direct warning here, since it shapes how to read every chapter that follows. The ESP32 family includes multiple chip variants and a wide range of development boards, each with its own peripheral set, pin mapping, and power characteristics. A pin that works for I2C on one board might be reserved for flash or a strapping function on another, and sleep current, wake latency, and ADC behavior can all differ meaningfully between variants. Treat every pin assignment and power figure in this book as illustrative of a pattern, and verify the specifics against the documentation for whatever chip and board sit on your desk before committing to a design.

Version differences deserve the same caution. ESP-IDF is an actively developed framework, and APIs, default behaviors, and even which features live in the main repository can change between releases, as the earlier move of ESP-MQTT into its own component illustrates. Code examples in this book reflect patterns that are stable across recent versions, but the exact function signature or configuration option you find in Espressif's own documentation for your installed version is the one to trust if the two ever disagree. Building the habit of checking documentation against your specific release now will save far more time later than memorizing any single version's exact API.

A practical way to work through this book is alongside a real board and a real project, even a small one, rather than reading the chapters in isolation. Concepts like task priorities or queue behavior are abstract until you have watched them actually change how your own code behaves on real hardware. Consider picking a simple target early, perhaps a sensor you already own, and rebuilding it in ESP-IDF chapter by chapter as the relevant concepts are introduced: a task structure from the FreeRTOS chapters, a sensor driver from the peripherals chapter, a network upload from the Wi-Fi and MQTT chapter, and a sleep cycle from the low-power chapter.

The final project chapter, which assembles a complete battery-powered sensor node, is written to be the natural destination of exactly that kind of running project. It draws on task design, peripheral reading, network publishing, sleep and wake cycles, logging, and OTA updates all at once, which is also why it comes last. Treat the earlier chapters as building the individual pieces that final chapter assembles, rather than as separate topics to master and forget.

Code examples throughout are written to illustrate a concept clearly rather than to be copied wholesale into production firmware. Error handling is sometimes simplified in an example so the specific technique being taught, such as reading from a queue or configuring an ADC channel, is not buried under defensive code unrelated to that lesson. Real firmware, especially anything battery-powered or field-deployed, needs more thorough error handling than most examples show, and the debugging and logging chapter addresses how to build that habit deliberately rather than relying on examples to demonstrate it every time.

It also helps to keep Espressif's own documentation open alongside this book rather than treating the two as separate efforts. This book explains the reasoning behind ESP-IDF's structure and shows it in action, but the official documentation is the authoritative source for exact function signatures, configuration options, and version-specific behavior. Cross-referencing the two is not a sign that this book has left something out, it is simply how ESP-IDF development works in practice, given how much detail varies by chip variant and release.

Mistakes along the way are part of the process, especially around interrupt service routines, task priorities, and memory sizing, three areas where ESP-IDF's extra control also means extra ways to get something subtly wrong. The chapters on these topics include common pitfalls precisely because they are common, not because they are exotic edge cases. Recognizing a familiar mistake in your own code, rather than feeling stuck by a mysterious crash, is often the difference between an hour of debugging and a week of it.

By the time the final chapter's sensor node comes together, the goal is not just a working device but a working mental model: one where a crash, a dropped connection, or a battery draining faster than expected points toward a specific, inspectable cause rather than a vague sense that something in the loop went wrong. That shift, from guessing to diagnosing, is what separates firmware that happens to work from firmware built to be trusted. The next chapter starts building toward it with the first concrete step, getting ESP-IDF installed and a project built from scratch.

A toolchain is the set of programs that turn source code into something a chip can run: a compiler, an assembler, a linker, and supporting utilities, all built specifically for the processor architecture inside the ESP32 family. Arduino's board manager downloaded and hid this toolchain automatically the first time a board was selected. ESP-IDF asks for a more deliberate install, because the framework supports several different chip variants, each with its own instruction set details, and the toolchain has to match the one being targeted. Getting this step right once means every later project on that machine reuses the same installation, so it is worth doing carefully rather than rushing past it.

Since ESP-IDF 6.0, the recommended route is the ESP-IDF Installation Manager (EIM), which downloads a chosen ESP-IDF release together with the matching compiler, Python dependencies, and supporting tools. The older method, cloning the repository and running its bundled install script, still works. Either installer also sets up a Python virtual environment so the framework's tooling does not collide with other Python projects on the same machine. Once the install finishes, a separate environment-activation step (running the activation script EIM creates for that ESP-IDF version, or sourcing the export script in the older method) puts idf.py and the compiler on the system path for that terminal session. Forgetting this activation step is one of the most common early stumbling blocks, producing a command not found error that has nothing to do with the project code at all.

Target support is the second half of this setup. ESP-IDF is built to serve multiple chips in the ESP32 family, and a project must declare which one it is building for before the toolchain can produce correct output. This matters because peripherals, pin counts, and even some low-power behavior differ across chip variants, a point worth remembering every time a tutorial online assumes a board that is not the one on the desk. Selecting a target is usually a one-time command run inside a project folder, after which the build system remembers the choice and configures itself accordingly.

A practical example makes this concrete. Imagine starting a brand-new project folder and running the target-selection command before writing any code. That one command regenerates the project's configuration defaults to match the chosen chip, including which peripherals are considered available and what default pin behavior applies. Switching targets later is possible but triggers a full reconfiguration, since cached build artifacts for one chip are not valid for another. This is why it pays to decide on the target hardware early, even if actual sensor wiring happens in a later chapter.

Verification is the last piece of a clean install, and skipping it tends to cost more time later than it saves now. A reliable way to confirm the toolchain and target support are both working is to build one of the official example projects that ships inside the ESP-IDF repository, before writing any original code. If that example compiles and flashes successfully, the installation is sound and any future build failure is almost certainly a project-level issue rather than an environment issue. If it fails, the error output at this stage is far easier to interpret than the same failure buried inside a half-written sensor node project.

The checklist below captures a complete first-install sequence in order, useful as a reference the first time through and as a troubleshooting guide afterward.

One subtlety worth flagging early: because ESP-IDF releases evolve and APIs or default tooling can change between versions, it pays to install the specific release version that matches the documentation being followed, rather than always grabbing the newest branch. A project built against one release's component APIs may not compile cleanly against a newer release without adjustment. Keeping a note of which ESP-IDF version a project was built against, alongside the project itself, saves confusion months later when returning to old code on a freshly reinstalled machine.

It also helps to understand what the environment activation step is actually doing, rather than treating it as a magic incantation. It sets environment variables pointing at the installed toolchain, adds the idf.py script and compiler binaries to the shell's search path, and activates the Python virtual environment created during setup. Any terminal window that has not run this activation step will not recognize idf.py at all, which is why switching between terminal tabs or restarting a machine often produces a sudden command not found that looks alarming but has a one-line fix.

Another frequent source of confusion is mixing toolchain versions across projects without realizing it. If multiple ESP-IDF versions are installed side by side for different projects, each with its own activation script, activating the wrong one before building a given project can produce strange mismatches between the compiler and the framework headers. Keeping each ESP-IDF version in its own clearly named folder, and being deliberate about which activation script gets run, removes an entire category of hard-to-diagnose build errors.

Hardware connection problems can also masquerade as toolchain problems. A board that fails to flash might have a toolchain that works perfectly, but a USB driver issue, a wrong serial port selection, or a board that needs to be manually placed into bootloader mode. Before suspecting the installation itself, it is worth confirming the board is detected at the operating system level and that the correct serial port is being used, since idf.py's flashing step depends entirely on that connection being solid.

Once the toolchain, target selection, and a working example are all confirmed, the environment stops being a variable in any later debugging session. That stability matters more than it might seem at this early stage, because every subsequent chapter, from FreeRTOS tasks to OTA updates, assumes this groundwork is already solid and spends no further time revisiting it.

Every ESP-IDF project is organized into components.^[1] A component is a self-contained unit of code, typically a folder containing source files, headers, and a small build description that declares what the component needs and what it exposes to the rest of the project. Think of a component the way an Arduino library behaves, except a component can also depend on other components, declare its own configuration options, and be swapped out without touching unrelated parts of the project. The main application code itself lives in a component too, named main, and it depends on whichever other components the firmware actually needs: Wi-Fi, a sensor driver, or a networking client.

A fresh project generated from a template typically contains a top-level project configuration file, a main component folder, and very little else. As the firmware grows, new components get added either by writing them from scratch inside the project, or by pulling in existing components published by Espressif or the wider community. This is a deliberate design choice: rather than every feature living in one sprawling application file, functionality gets split along natural boundaries, like a component dedicated to reading a specific sensor, kept separate from a component that manages Wi-Fi connectivity, even though both eventually get used together inside app_main (the application's entry point, covered with the startup flow in the next chapter).

Each component can declare dependencies on other components explicitly. This matters because the build system needs to know the full dependency graph before it can decide a correct build order, and because explicit dependencies make a project's structure legible to anyone reading it later, including a future version of the person who wrote it. A component that reads a sensor over I2C, for instance, would declare a dependency on the driver component that provides I2C bus access, rather than silently assuming it will be available. This discipline feels unfamiliar coming from Arduino's flatter library model, but it scales far better once a project has a dozen moving pieces instead of two or three.

Configuration is the second major concept in this section, and it replaces a pattern familiar to anyone who has sprinkled #define DEBUG 1 statements through an Arduino sketch. ESP-IDF centralizes configuration through Kconfig, a menu-driven settings system borrowed from the Linux kernel's build tooling. Each component can define its own configuration options inside a Kconfig file, specifying things like default buffer sizes, feature toggles, or pin assignments, each with a description and sometimes a valid range. These options surface together in a single searchable interface rather than being scattered across dozens of header files.

Running the configuration menu opens an interactive interface, commonly accessed through a dedicated idf.py subcommand, where these options can be browsed and changed. A maker working on a battery-powered sensor node, for example, might open this menu to adjust the default log verbosity, change a stack size default exposed by a component, or toggle a feature flag that a networking component provides. Every change made in this menu gets written into a single generated settings file for the project (the sdkconfig file, covered in depth in the next chapter), which the build system then reads whenever it compiles.

The table below summarizes how the pieces of project structure map onto familiar Arduino concepts, which helps orient the shift without pretending the two models are identical.

It helps to walk through what actually happens when a new component is added to a project that previously had only the main component. A new folder appears alongside the main component, containing its own source files and a short build description listing what it needs from the rest of the project. The main component's own build description is then updated to declare a dependency on this new component, and nothing else in the project needs to change. The build system discovers this new component automatically on the next build, incorporates its Kconfig options into the configuration menu if it declares any, and compiles it alongside everything else.

This structure pays off directly when building toward the sensor node that this book works toward across later chapters. A Wi-Fi connection component, an MQTT publishing component, and a sensor-reading component can all be developed and tested somewhat independently, each with its own configuration options, before being combined inside the application logic. Debugging a problem becomes easier too, since a fault that only shows up when reading a sensor can often be isolated to that one component without needing to suspect networking code that has nothing to do with the symptom.

A common early mistake is treating every new piece of functionality as code to paste directly into the main component, the way a new function might get added to an Arduino sketch. This works for small projects but becomes unmanageable quickly, especially once a project needs the same functionality across more than one application, or needs to test a piece of logic in isolation. Getting comfortable creating a new component folder early, even for something small, builds a habit that scales naturally as a project grows toward the complexity of a full sensor node.

Another common point of confusion is assuming that changes made directly to generated configuration output will persist. The sdkconfig file is generated from Kconfig definitions and project defaults, and while it can be edited directly in a pinch, the configuration menu is the intended way to make changes, since it validates choices against the ranges and dependencies each option declares. Editing the generated file by hand risks introducing an inconsistent state that the menu would have caught, such as enabling a feature that depends on another feature that remains disabled.

Finally, it is worth recognizing that Kconfig options are not purely cosmetic. Several options genuinely change which code paths get compiled into the final binary, not just which defaults get used at runtime. A networking component might offer a Kconfig option that completely excludes certain code from compilation when a related feature is disabled, shrinking the final firmware size. Understanding this distinction, between a runtime setting and a compile-time choice, helps explain why some configuration changes require a full rebuild rather than a quick reflash, a distinction that becomes more visible once the build system itself is explained in the next section.

With components and configuration in place, the question becomes how a pile of source files and settings actually turns into a binary ready to flash onto the chip. ESP-IDF projects are commonly built with idf.py using CMake and Ninja.^[1] Each of these three tools has a distinct job, and understanding the division of labor between them makes build errors far less mysterious. CMake decides what needs to be built and in what order, by reading the project's and each component's build descriptions and working out a dependency graph. Ninja then actually executes that plan, running the compiler and linker commands CMake generated, as quickly as the dependency graph allows. idf.py sits above both, providing the friendly command-line interface a maker actually types.

CMake itself does not compile anything directly. Its job is to read the project structure, resolve which components depend on which, gather the Kconfig-derived settings relevant to compilation, and generate a detailed build plan in a format that a lower-level build tool can execute. This two-step separation, planning versus executing, is common in larger software projects because it lets the same planning logic target different execution backends. ESP-IDF's default backend is Ninja, chosen because it is built specifically for fast, minimal-overhead execution of large build plans, which matters once a project has dozens of components and hundreds of source files to recompile only partially after a small change.

Ninja's job, once CMake has generated its build plan, is comparatively narrow but important: read that plan, figure out which files have changed since the last build, and run only the compiler and linker commands strictly necessary to bring the output up to date. This is why editing a single source file inside one component typically triggers a build that finishes quickly, recompiling only that file and relinking, rather than rebuilding the entire project from scratch. The first build of a project is always slower, because nothing has been compiled yet, but every build afterward benefits from this incremental behavior.

idf.py is the command that ties CMake, Ninja, and several other supporting tools together behind a short, memorable interface. Running a build does not require invoking CMake and Ninja separately with the right flags, since idf.py handles that orchestration internally, along with tasks like flashing the resulting binary to a connected board, opening a serial monitor to view log output, and launching the Kconfig-based configuration menu. The table below lists the idf.py subcommands a maker reaches for constantly during normal development, worth bookmarking until they become second nature.

A worked example clarifies how these pieces interact in practice. Suppose a maker changes a single line inside a sensor-reading component, then runs idf.py build. idf.py first checks whether CMake's build plan needs regenerating at all, which it typically does not unless a build description file itself changed, only the source code. It then hands control to Ninja, which compares file timestamps against its existing plan, recompiles only the modified source file and the component it belongs to, relinks the final binary, and reports success in a fraction of the time a full rebuild would take. Running idf.py flash monitor afterward writes that updated binary to the board and immediately opens a log view, a workflow that becomes reflexive after a handful of iterations.

Full rebuilds become necessary in a smaller set of situations, and recognizing them saves time spent puzzling over a build that silently used stale settings. Changing the project's target chip always forces a full reconfiguration, since compiler flags and available peripherals differ by target. Editing a build description file for a component, rather than its source code, usually also triggers CMake to regenerate its plan before Ninja runs. Deeply mysterious build behavior, where a change does not seem to take effect no matter how many times the project is rebuilt, is often resolved by running idf.py fullclean followed by a fresh build, which clears any stale generated output that might otherwise linger.

The steps below walk through the complete cycle from an idea to a running test on hardware, useful as a repeatable mental checklist during early development.

It is worth noting that ESP-IDF's documentation also describes a newer build system variant, currently presented as a technical preview rather than the default path. Because it remains a preview rather than the established approach, the workflow described above using idf.py, CMake, and Ninja in their conventional roles is the dependable starting point, and it remains the version worth learning first regardless of which approach a project eventually adopts. Treating a technical preview as a stable foundation for a first project risks running into rough edges that have nothing to do with the maker's own code.

A frequent point of frustration among newcomers is assuming that a configuration change made through menuconfig takes effect immediately without rebuilding. In reality, menuconfig only updates the generated sdkconfig file. The actual effect of that change, whether it alters a default buffer size, a stack size, or excludes a chunk of code from compilation entirely, only takes hold the next time the project is built. Skipping the rebuild step after a configuration change is one of the most common reasons a setting appears to have had no effect, when in fact it simply has not been compiled in yet.

With a working toolchain, a clear mental model of how components and configuration fit together, and a comfortable rhythm of building, flashing, and monitoring through idf.py, the ground is set for the next question: what actually happens inside the firmware once that binary starts running on the chip, from the bootloader through to the first line of application code.

Every ESP-IDF application starts execution in a function with a fixed name and signature:

void app_main(void)
{
    // your startup code goes here
}

There is no setup() and no loop(). That absence is the single biggest conceptual shift coming from Arduino. On the Arduino core, the framework itself runs a hidden loop task that calls your loop() function over and over, forever, and calls your setup() exactly once before that loop begins. ESP-IDF removes that hidden wrapper and gives you app_main directly, called once, with no built-in repetition. If your code needs to run repeatedly, you write that repetition yourself, usually inside a FreeRTOS task built around its own loop, a topic covered in full in the chapter on multitasking with FreeRTOS tasks.

What happens before app_main is called is a layered startup sequence, and understanding the order matters because it explains what is and is not ready by the time your code runs. The sequence looks roughly like this on power-on or reset:

• The first-stage bootloader, stored in read-only silicon, does minimal setup and loads the second-stage bootloader from flash.
• The second-stage bootloader, itself a small compiled ESP-IDF application, reads the partition table to find out where application images live.
• The bootloader picks an application partition (there may be more than one, as covered in the chapter on OTA updates and rollback safety), verifies it, and jumps into it.
• Inside your application image, low-level startup code initializes the C runtime, static data, and the FreeRTOS scheduler, then creates an initial task.
• That initial task calls app_main, at which point your code finally runs, already inside a FreeRTOS task context rather than bare metal.

That last point deserves attention: by the time any line inside app_main executes, FreeRTOS is already scheduling tasks. app_main itself runs as a task, with its own stack and priority, not as some special bare-metal entry point sitting outside the operating system. That is different from how it feels on Arduino, where loop() quietly runs inside a hidden task Espressif's Arduino core sets up for you without telling you. ESP-IDF just removes the curtain, which is also why chapters ahead can talk about creating additional tasks from inside app_main without any special ceremony: you are simply asking an already-running scheduler to track one more task.

A practical consequence follows from app_main having no built-in repetition: if it returns, nothing calls it again. Returning from app_main is legal and does not crash the chip, but the task backing it simply ends, and nothing further happens inside that task. A common beginner mistake, carried over by habit from loop(), is writing sequential setup-then-work code inside app_main and expecting it to repeat. The fix is almost always one of two patterns: either spin up one or more long-running FreeRTOS tasks from inside app_main and let it return once those tasks are launched, or put an explicit infinite loop inside app_main itself for a simple, single-threaded program. The first pattern scales to the multitask structure this book is building toward; the second is fine for a quick test but rarely survives into a finished sensor node.

The initialization order inside a typical app_main also tends to follow a predictable shape, which is worth internalizing as a mental checklist rather than memorizing line by line:

That staged structure mirrors why ESP-IDF calls itself a framework rather than just a library collection: it expects you to treat startup as a short, deliberate wiring phase, separate from the long-running behavior that follows. A sketch-style program that crams sensor reads, network calls, and delays into one continuous block inside app_main will technically compile and often even run, but it throws away the scheduling flexibility that justified moving to ESP-IDF in the first place. Treating app_main as a constructor for your application, rather than as the application itself, is the mental shift that makes the rest of this book's task-based structure feel natural instead of imposed.

One more detail worth knowing early: the stack size of the task running app_main is itself configurable through sdkconfig, the configuration system covered later in this chapter. If startup code allocates large local arrays or calls into components with deep call stacks, a default stack size that was fine for a thin wiring function can overflow. The symptom is usually a crash during startup with a corrupted-looking backtrace, which is one of the first places to look when a board resets in a loop immediately after flashing. The chapter on debugging and logging builds directly on this, since a startup crash is exactly where log output and a debugger first earn their keep.

A worked example clarifies the pattern better than description alone. Imagine a sensor node that reads a temperature sensor over I2C and publishes it over MQTT. Written the Arduino way, this often becomes one loop() with a counter, a delay, and a cascade of if statements checking whether enough time has passed to read the sensor, then again whether enough time has passed to publish. Written the ESP-IDF way, app_main instead initializes storage, networking, and the I2C bus, then creates a sensing task and a networking task that communicate through a queue (fully covered in the chapter on queues and software timers), and returns. Each task then runs its own simple loop, without juggling someone else's timing. The difference is not cosmetic: the sensing task can keep sampling on schedule even while the networking task is blocked waiting on a slow server response, something a single loop() cannot do without manual, error-prone timing logic.

That example also highlights why this chapter sits exactly where it does in the book. Everything FreeRTOS-related in the next chapter assumes you already know that app_main is a task-launching function, not a repeating loop, and everything about peripherals and networking later assumes initialization happens in a predictable order rooted in app_main. Getting comfortable with this entry point is less about the few lines of code it usually contains and more about the shift in posture it represents: you are no longer writing the one program that runs on the chip, you are writing the first task that configures the system the scheduler will manage from then on.

Flash memory on an ESP32-family chip is one continuous block of storage, and nothing about the hardware itself says which bytes hold the bootloader, which hold your application, and which hold saved settings. The partition table is the data structure that imposes that division, stored at a fixed, well-known location near the start of flash so the bootloader always knows where to look for it first. Without a partition table, the bootloader would have no way to find your application image at all, since flash would just be an undifferentiated sea of bytes with no map describing what lives where.

A partition table is, practically speaking, a small table of entries, each one describing one partition with a name, a type, a subtype, an offset into flash, and a size. ESP-IDF ships a handful of ready-made partition table layouts as a starting point, and a project selects one through sdkconfig, or supplies a custom comma-separated file describing exact offsets and sizes. A simplified example of what such a file looks like:

# Name,   Type, SubType, Offset,  Size
nvs,      data, nvs,     0x9000,  0x6000
phy_init, data, phy,     0xf000,  0x1000
factory,  app,  factory, 0x10000, 1M

Reading that table line by line reveals the pattern. The nvs partition holds non-volatile storage, a small key-value filesystem used for Wi-Fi credentials, calibration data, and any settings your own code chooses to persist there. The phy_init partition can hold radio initialization data for Wi-Fi and Bluetooth, although by default ESP-IDF builds that data into the application and leaves this partition unused. The factory partition, marked type app, is where your compiled application image actually lives, and its size determines the hard ceiling on how large your compiled firmware can grow before the build fails with a size error. The nvs and application partitions back real system components that other chapters assume are already in place.

The table below sketches the partition types a project commonly encounters and what each one is for, useful as a quick reference when a build error mentions a partition by name.

That table makes a key design decision visible: a project meant to receive updates in the field needs more than one application partition, typically named something like ota_0 and ota_1, plus an otadata partition that tracks which one is currently active and whether a rollback is pending. This is the layout decision that has to be made before a device ships, because changing partition offsets on a device already in the field, with no physical access, is at best risky and at worst not possible without bricking it. The chapter on OTA updates and rollback safety goes deep into how that switching and rollback mechanism actually works; this chapter's job is only to flag that the partition table is where the room for it gets allocated, like reserving a spare bedroom before you know you will need it.

Flash size itself imposes a hard budget that the partition table has to live inside. If a board has, for instance, four megabytes of flash, every partition entry's offset plus size has to fit within that boundary, and ESP-IDF's build tooling will refuse to flash a table (or an application image) that overruns it. A frequent beginner surprise is discovering that the default partition table, sized for small example projects, is too cramped once a project links in networking and TLS libraries for MQTT and HTTPS, both covered in the chapter on Wi-Fi, HTTP, and MQTT. The fix is almost always to switch to a larger predefined table through sdkconfig, or to write a custom partition table file with a bigger application partition.

A second, less obvious flash-size consideration is where the partition table points for non-volatile storage. Any code that calls into the non-volatile storage library, including Wi-Fi's own credential storage, needs an nvs partition of adequate size, and a partition that is too small will cause storage calls to fail even though the rest of the application compiles and runs fine. Because this failure mode shows up at runtime rather than at build time, it is easy to misdiagnose as a bug in application code rather than a flash layout problem. Checking the size of the nvs partition is one of the first troubleshooting steps worth taking when Wi-Fi credentials mysteriously fail to persist across reboots.

Choosing a partition table, then, is really a small design exercise completed once, early, rather than a setting to revisit casually. A reasonable approach for a new project is to start from one of ESP-IDF's predefined tables that already includes two OTA application slots, confirm the application partition size is comfortably larger than the current compiled binary, and leave that table alone unless flash usage or OTA requirements genuinely change. Projects that skip this step and start from the single-factory-partition default often have to redo their flash layout later, right around the time they are trying to add OTA support, which is exactly the wrong moment to be learning how partition tables work.

The partition table is itself just a binary file flashed to a known offset, separate from your application image and the bootloader image. The build system (introduced in the chapter on the toolchain and build system) generates this binary from the human-readable CSV file automatically, and flashing a project writes three distinct pieces to flash: the bootloader, the partition table, and one or more application images, each at the offset the table or the bootloader's fixed conventions specify. Seeing flashing as writing three separate pieces, rather than one monolithic blob, makes later troubleshooting far less mysterious: a corrupted partition table, for example, produces a very different failure than a corrupted application image, and knowing the difference narrows down where to look.

Put together, the partition table is the quiet administrative layer that makes everything else in this book possible: it is where OTA update slots are reserved, where Wi-Fi credentials find a home, and where the hard ceiling on application size gets set. None of that requires writing code, only a deliberate choice of layout early in a project's life, which is precisely why it belongs in the application's anatomy rather than in any single feature chapter.

If the partition table decides how flash space is divided, sdkconfig decides how almost everything else behaves, from which partition table gets used to how big the app_main task's stack is to which logging level prints by default. It is a plain text file, generated for a project and kept alongside its source, holding a long list of configuration options as simple key-value lines. A short excerpt looks like this:

CONFIG_PARTITION_TABLE_CUSTOM=y
CONFIG_PARTITION_TABLE_FILENAME="partitions.csv"
CONFIG_ESP_MAIN_TASK_STACK_SIZE=4096
CONFIG_LOG_DEFAULT_LEVEL_INFO=y

Every one of those CONFIG_ entries corresponds to an option defined somewhere in ESP-IDF's Kconfig system, the same configuration mechanism the Linux kernel popularized, adapted here to describe ESP-IDF and component options. Each component, whether it is the Wi-Fi driver, the logging library, or a third-party sensor library, can declare its own Kconfig options describing things it needs a project to decide: buffer sizes, feature toggles, default pin numbers, and so on. The project's sdkconfig file is simply the saved answer sheet for all of those questions, across every component in the build, collected into one file.

Hand-editing sdkconfig directly is possible but discouraged, mainly because the file is regenerated and can be overwritten, and because it offers no guidance about what each option means or what values are valid. The far more common and reliable way to change settings is through the interactive configuration menu, launched from a project's root directory:

idf.py menuconfig

This opens a text-based menu system, organized into categories matching the components contributing options: a Partition Table menu, an FreeRTOS menu, a Wi-Fi menu, a Log output menu, and many more depending on what the project includes. Each setting in that menu shows a short help text describing what it does and, for numeric settings, often a valid range, which makes menuconfig a far safer way to explore options than guessing at raw CONFIG_ names. Changes made inside menuconfig are written back into the project's sdkconfig file automatically when the menu is saved and exited, keeping the text file and the interactive view always in sync.

The settings most relevant to startup, flash layout, and logging live in predictable places inside that menu. The partition table choice sits under a Partition Table category, where a project can switch between predefined single-factory-app layouts, predefined OTA-ready layouts with two app slots, or a custom CSV file supplied by the project. The stack size of the task running app_main, mentioned earlier as a common source of startup crashes, lives under a category related to the main task, and increasing it is often the correct fix when a backtrace points to a stack overflow during early startup. Default log verbosity lives under a logging-related category, letting a project choose, for instance, to compile out verbose debug output entirely in a release build while keeping informational messages, a decision that interacts directly with the chapter on logging and debugging.

A second file worth knowing about is sdkconfig.defaults, an optional file a project can keep in version control to seed sensible starting values without committing the full, much longer generated sdkconfig file. This matters for teams or for a maker returning to a project months later: sdkconfig itself is regenerated and can pick up new default options whenever ESP-IDF or a component is upgraded, so committing the full file to version control can create noisy, confusing differences over time. A sdkconfig.defaults file containing only the handful of options a project deliberately chose to override, by contrast, stays small, readable, and stable, which is the pattern ESP-IDF's own example projects tend to follow.

Configuration options are not independent switches; many of them interact, and menuconfig enforces some of those dependencies automatically by hiding or graying out options that do not apply. Choosing a custom partition table, for example, reveals a filename field that a predefined table option hides, since that field is meaningless unless a custom file is in play. Enabling certain networking features can pull in additional options for buffer sizes or security settings that only make sense once that feature is active. This dependency-aware behavior is one of the real advantages of using menuconfig over hand-editing the raw file, since a hand edit can produce a configuration state the menu system would never have allowed, sometimes leading to a build that compiles but behaves unpredictably.

A practical troubleshooting habit worth building early: when a build fails with an error mentioning a CONFIG_ name, or when a component's documentation says enable this option in menuconfig, that name can usually be located quickly by using menuconfig's built-in search feature rather than hunting through every category by hand. Searching by the configuration name, or even by a keyword from its description, jumps straight to the relevant menu entry along with its help text, turning a frustrating error message into a two-minute fix. This habit becomes especially useful once later chapters start asking for specific menuconfig changes to enable features like core dumps, a custom MQTT component, or increased task stack sizes for networking code.

It helps to keep a mental boundary between what the partition table controls and what sdkconfig controls, since the two can feel similar at first glance but answer different questions. The partition table answers where does each piece of data live in flash, and how big is the room reserved for it. sdkconfig answers how should the compiled software behave, given the components it includes. The partition table choice is itself one of the many things sdkconfig records, which is why the two topics sit side by side in this chapter: one defines the physical map, the other defines nearly every behavioral decision layered on top of it, and together with the app_main entry point they form the complete picture of what happens between power-on and the first line of code you actually wrote.

A FreeRTOS task is a small, independent program that runs inside the larger firmware, with its own call stack, its own saved register state, and its own notion of where it currently is in its code. Creating one means telling FreeRTOS four essential things: what function to run, how much stack memory to reserve for it, what priority it should have, and (on ESP32) which core it is allowed to run on. The function itself is written as an infinite loop, much like Arduino's loop(), except each task has its own loop instead of sharing one with everything else in the firmware.

The most common creation call is xTaskCreate, which leaves core assignment to the scheduler, and xTaskCreatePinnedToCore, which pins the task to a specific core. A minimal example looks like this:

void sensor_task(void *pvParameters) {
    while (1) {
        // read sensor, process data
        vTaskDelay(pdMS_TO_TICKS(10));
    }
}

void app_main(void) {
    xTaskCreate(
        sensor_task,      // task function
        "sensor_task",    // name for debugging
        4096,              // stack size in bytes
        NULL,              // parameters passed to the task
        5,                 // priority
        NULL               // task handle output
    );
}

Notice the vTaskDelay call inside the loop. Without it, this task would run forever without yielding, starving any task of lower priority. A task delay suspends only this task and lets the scheduler run something else during the wait. On the ESP32 Arduino core, delay() is built on vTaskDelay too, but a sketch has only one task of its own, so the wait still freezes everything the sketch does. That single difference explains why a well-structured FreeRTOS program can keep a network connection alive, poll a button, and sample a sensor all at once without any of them noticing the others exist.

Stack size deserves careful attention, because it is one of the most common sources of mysterious crashes in early ESP-IDF projects. Each task's stack holds its local variables, function call history, and anything it passes by value, and unlike the heap, a stack overflow often corrupts nearby memory silently rather than producing a clean error. A task that calls deeply nested functions, uses large local arrays, or links into a library with heavy internal buffering needs considerably more stack than a short, simple loop. Guessing too small risks a crash that may only appear under specific conditions, such as a particular sensor reading triggering a rarely used code path.

A practical approach is to start generous, around 4096 bytes for straightforward tasks or more for anything touching networking or string formatting, and then measure. ESP-IDF includes uxTaskGetStackHighWaterMark(), which reports how close a task has come to using its entire allocated stack during its lifetime so far. Calling it periodically during development, then trimming the allocation once the real high-water mark is known, avoids both the crash risk of undersizing and the wasted RAM of guessing too generously for every task in the system.

The following checklist captures the decisions worth making every time a new task is created, before writing the function body itself.

Task names matter more than they might seem to at first glance. When several tasks are running and something goes wrong, the only way to tell which one triggered a crash, consumed too much CPU time, or ran out of stack is by the name given at creation. A task named t1 gives no clues in a crash log, while one named bme280_poll_task immediately tells the person debugging what was happening when things failed. This costs nothing at creation time and pays for itself the first time something breaks in the field.

Parameters passed into a task through the fourth argument of xTaskCreate deserve a note of caution. That pointer is handed to the task function once, at creation, and the task is then responsible for using it safely for its entire lifetime. A common mistake is passing the address of a local stack variable from the creating function, which may be destroyed by the time the new task actually runs, since task creation does not guarantee immediate execution. Passing a pointer to a static, global, or heap-allocated structure avoids this entirely, and is the safer default for anything beyond the simplest constant value.

Deleting a task is possible through vTaskDelete(), but it is rarely the right tool for ordinary firmware logic. A task that has finished its one-time job can call vTaskDelete(NULL) to remove itself, which is reasonable for something like a one-shot startup task. Deleting tasks dynamically and recreating them later, however, tends to produce fragmented memory and makes the system harder to reason about. Most well-designed sensor node firmware creates its full set of tasks once at startup and lets each one run for the life of the device, communicating state changes through queues and event groups rather than being torn down and rebuilt.

One frequent point of confusion for anyone coming from Arduino is realizing that app_main() itself runs as a task, and it is allowed to return. Returning from app_main() does not shut the chip down the way it might seem to; the function simply exits and its own task is cleaned up, while any tasks it has already created with xTaskCreate keep running independently. This is why app_main() commonly does its setup work, spins up every task the firmware needs, and then returns, leaving the created tasks as the ongoing, persistent part of the program.

Consider a simple two-sensor node, with a fast vibration sensor polled at a short interval and a slow temperature sensor polled at a long interval. Writing both into a single Arduino-style loop would mean carefully interleaving two different timing intervals with manual timestamp comparisons, and any blocking operation in the temperature read path would delay the vibration sampling behind it. As two separate FreeRTOS tasks, each one simply loops with its own vTaskDelay call matching its own interval, and the scheduler interleaves them automatically. Neither task's code needs to know the other exists.

A frequent early mistake is forgetting the yielding call altogether, especially when adapting Arduino code that never needed one. Without vTaskDelay, vTaskDelayUntil, or a blocking call on a queue or semaphore inside the loop, a task runs continuously and prevents lower-priority tasks from ever executing, a situation commonly called starving the scheduler. This can look like a frozen Wi-Fi connection or an unresponsive button, when the real cause is a tight loop elsewhere in the firmware hogging CPU time. Checking every new task's loop body for a yielding call is one of the fastest sanity checks when something behaves unexpectedly.

Stack sizing mistakes and missing yield calls together account for many of the confusing early bugs in ESP-IDF projects, which is exactly why both deserve attention before moving on to priorities and scheduling behavior. Getting the creation pattern right, generous but measured stack, a clear infinite loop with a yielding call, a descriptive name, and safely scoped parameters, makes every task that follows easier to write and easier to debug.

Every FreeRTOS task is created with a numeric priority, and the scheduler's basic rule is straightforward: among all tasks that are currently ready to run, it always runs the one with the highest priority number. If two tasks share the same highest priority and both are ready, the scheduler time-slices between them, giving each a turn in round-robin fashion. This single rule explains almost every scheduling behavior seen in ESP-IDF firmware, and it is worth internalizing before writing multi-task programs, because getting priorities wrong is a common source of subtle, hard-to-reproduce bugs.

A task is not always eligible to run just because it exists. At any moment a task sits in one of several states: running (actually executing on a core right now), ready (eligible to run but waiting its turn), blocked (waiting on something like a delay, a queue, or a semaphore), or suspended (deliberately paused). A high-priority task that is blocked waiting on a queue does not prevent lower-priority tasks from running, because blocked tasks are set aside by the scheduler until whatever they are waiting for becomes available. This is why blocking calls like vTaskDelay or queue reads are so important: they let a task step aside gracefully instead of hogging the processor.

Priority numbers in FreeRTOS run from 0 upward, with 0 reserved for the idle task that runs only when nothing else has work to do. Application tasks are typically assigned values well above that, and the specific range available depends on the configuration, but the relative ordering is what matters in practice, not the absolute numbers. A task handling time-critical work, such as reacting quickly to an interrupt-triggered event, generally deserves a higher priority than a task doing background logging or periodic reporting that can tolerate some delay. Assigning every task the same priority defeats the purpose of having priorities at all, since it forces the scheduler to time-slice everything equally regardless of actual urgency.

A good default pattern assigns three tiers: a small number of high-priority tasks for latency-sensitive work like responding to deferred interrupt handling, a middle tier for regular sensor polling and protocol handling, and a lower tier for background tasks like logging or slow periodic reporting that genuinely do not matter if they run a little late. The table below sketches this kind of layout for a typical sensor node, as a starting point to adapt rather than a fixed rule.

Core affinity adds a second dimension on top of priority, specific to the dual-core members of the ESP32 family. Where xTaskCreate leaves the scheduler free to place a task on either core and move it between them, xTaskCreatePinnedToCore locks a task to one specific core for its entire life, and ESP-IDF exposes this pinning capability directly through its FreeRTOS integration.^[1] The call signature mirrors xTaskCreate with one extra argument for the target core, commonly written as 0 or 1, or a constant meaning "no preference" if pinning is not required:

xTaskCreatePinnedToCore(
    wifi_task,      // task function
    "wifi_task",    // name
    4096,            // stack size
    NULL,            // parameters
    5,               // priority
    NULL,            // task handle
    1                // pin to core 1
);

Pinning matters because some workloads benefit from predictable placement, while others benefit from flexibility. A task handling network protocol work alongside other networking internals often performs more predictably when kept on the same core as those internals, avoiding the overhead of moving cached state between cores. Conversely, a flexible task with no particular affinity requirement can be left unpinned, letting the scheduler balance load across both cores as conditions change. There is no universal correct choice here, since the right answer depends on what else is running and how time-sensitive each task genuinely is, so treat pinning as a tool to reach for deliberately, not a default setting to apply everywhere.

A concrete scenario makes this concrete. Picture a sensor node with three tasks: one handling a time-critical interrupt-driven input, one managing a network connection, and one doing periodic background reporting. The interrupt-driven task gets the highest priority, since delays there could mean a missed hardware event. The networking task gets a middle priority and may be pinned to whichever core is already handling other networking-related background work, for consistency. The reporting task gets the lowest priority, is left unpinned, and is allowed to run whenever the scheduler has spare cycles, since a report arriving a few seconds late causes no real harm.

The decision tree below walks through a simple way to decide whether a new task needs explicit core pinning at all, which is a question worth asking for every new task before defaulting to pinning everything out of caution.

Priority inversion is worth knowing about even before the mutex mechanisms that address it are covered in depth later, because it shapes how priorities should be assigned in the first place. It happens when a high-priority task is blocked waiting for a resource held by a low-priority task, while a medium-priority task unrelated to either one keeps running and prevents the low-priority task from ever finishing and releasing the resource. The practical takeaway at this stage is to keep shared resources between tasks of similar priority where possible, and to be aware that blocking on a shared resource across widely different priorities can produce surprising delays that have nothing to do with the code's apparent logic.

Watch for the mirror image mistake as well: assigning too many tasks the same high priority, which turns the scheduler's careful ordering into an undifferentiated round-robin that behaves almost like no prioritization at all. If every task claims to be equally important, none of them actually are, and latency-sensitive work ends up competing for CPU time with background tasks that could easily have waited. A useful habit is reviewing the full list of task priorities periodically as a project grows, since priorities assigned early in development, when only two or three tasks exist, often need rebalancing once a sixth or seventh task has been added.

The scheduler's behavior around equal priorities deserves one more specific mention: tasks of equal priority that are both ready share CPU time in time slices, but a task of a higher priority that becomes ready will always preempt one of lower priority immediately, interrupting it mid-execution rather than waiting for its turn. This preemptive behavior is what makes FreeRTOS responsive to urgent events even while a long-running lower-priority task is mid-loop. Understanding this distinction between time-slicing among equals and immediate preemption across priority levels clarifies a great deal of scheduling behavior that otherwise looks inconsistent from the outside.

A task's lifecycle runs from creation through some combination of running, ready, and blocked states, and ideally ends only when the firmware intentionally retires it, if it is retired at all. Most of the serious bugs that show up in early FreeRTOS firmware come not from the scheduling logic itself, which is well tested and reliable, but from mistakes in how tasks are structured around that logic. The following pitfalls recur often enough in practice that recognizing them by name saves significant debugging time the first time each one appears.

The most common pitfall is a task function that returns instead of looping forever. In Arduino, a function that finishes simply ends and control returns somewhere predictable. A FreeRTOS task function is expected to run as an infinite loop, and if it falls through the bottom and returns, the behavior is undefined and typically leads to a crash, because FreeRTOS has no instruction for what should happen next to a task that was supposed to run indefinitely. The fix is structural discipline: every task body should end in while (1) { ... }, and if a task genuinely has one-time work to do and then nothing else, it should call vTaskDelete(NULL) explicitly rather than letting the function simply end.

The second common pitfall is stack overflow from undersized allocation, already introduced earlier but worth restating as a lifecycle issue specifically. A stack overflow does not always crash immediately or obviously; it can corrupt adjacent memory and cause a failure somewhere else entirely, including in a completely unrelated task, which makes it one of the more frustrating classes of bug to trace back to its source. ESP-IDF includes stack overflow detection that can be enabled through configuration, which turns a silent corruption into an explicit crash report naming the offending task, trading a confusing failure for a clear one.

A third pitfall involves shared global variables accessed from multiple tasks without any protection. Arduino code often reads and writes shared variables freely, since a single loop with interrupts is the only real source of concurrency to think about. Once code is split across several tasks running concurrently, a variable updated by one task while read by another can be caught mid-update, producing a value that is neither the old one nor the new one, especially for multi-byte types like a 64-bit double or a structure. This is the problem that queues, semaphores, and mutexes exist to solve, and while those tools belong to a later chapter in depth, recognizing the symptom now, an occasional garbled or inconsistent reading that cannot be reproduced reliably, helps identify when that chapter's tools are the actual fix needed.

A fourth pitfall shows up specifically with vTaskDelay used for anything that needs precise, drift-free timing. vTaskDelay counts ticks from the moment it is called, which means any variation in how long the rest of the loop body takes to execute accumulates as drift over time. A sensor meant to be read every exactly 100 ms will slowly drift later and later if the loop body's execution time varies even slightly between iterations. vTaskDelayUntil solves this by tracking an absolute wake time rather than a relative delay, keeping the interval accurate regardless of how long the rest of the loop takes, which matters for anything logging timestamped data at a fixed rate.

TickType_t last_wake = xTaskGetTickCount();
const TickType_t interval = pdMS_TO_TICKS(100);

while (1) {
    // do fixed-rate work here
    vTaskDelayUntil(&last_wake, interval);
}

A fifth pitfall is treating a watchdog timeout as a mystery rather than a scheduling symptom. ESP-IDF includes a watchdog timer mechanism (covered in depth in the chapter on debugging and recovery) that reports, and can be configured to reset the chip, when a task fails to yield for too long. When a watchdog trips unexpectedly, the first question worth asking is whether some task is missing a yielding call, running an unexpectedly long computation at too high a priority, or stuck waiting on a resource that will never become available. The watchdog is not the bug; it is a symptom pointing at a scheduling problem that deserves investigation in the task structure itself.

A sixth pitfall involves heap allocation inside a task loop that runs frequently. Calling malloc or equivalent allocation functions repeatedly inside a fast loop, rather than allocating once outside the loop and reusing the buffer, both wastes CPU time and risks heap fragmentation over a device's long uptime, which is especially relevant for a battery-powered node expected to run for months between service visits. The fix is usually straightforward: allocate buffers once, either as static variables or once near the top of the task function before the loop begins, and reuse them on every iteration rather than allocating and freeing repeatedly.

A seventh pitfall concerns deleting a task that still holds a resource another task is waiting on, such as a mutex it never released before being deleted. FreeRTOS does not automatically clean up resources a deleted task was holding, which can leave other tasks blocked indefinitely waiting for something that will never be released. If a task must be deletable mid-operation, it needs explicit cleanup logic before calling vTaskDelete, releasing anything it is holding first, or the deletion should be restructured so the task only ever deletes itself at a clean point in its own loop, with nothing outstanding.

Taken together, these pitfalls share a common thread: FreeRTOS gives firmware real concurrency, and real concurrency requires explicit discipline that a single Arduino loop never demanded. None of these issues are exotic or rare; they are the ordinary growing pains of writing multi-task firmware for the first time, and every one of them has a straightforward structural fix once it is recognized by name. The habit worth building from this chapter onward is reviewing new task code against this list before testing it, rather than waiting for one of these symptoms to appear on real hardware.

A FreeRTOS queue is a fixed-size buffer that holds a defined number of fixed-size items, managed so that one or more tasks can safely push items in while one or more tasks safely pull items out. Unlike a raw array shared between tasks, the queue implementation handles all the locking internally. A task that sends to a full queue, or receives from an empty one, can be told to block (wait) for a specified time, wait forever, or return immediately with a failure code. This blocking behavior is the mechanism that lets a consumer task sleep efficiently until there is actual work to do, instead of spinning in a loop and wasting CPU cycles checking a flag over and over.

Creating a queue takes two numbers: how many items it can hold, and the size in bytes of each item. A typical sensor pipeline might create a queue sized for ten readings, where each item is a small structure containing a sensor ID, a timestamp, and a floating-point value. The producer task (perhaps one that polls an I2C sensor, a topic owned by the peripherals chapter) copies a filled-in structure into the queue with xQueueSend. The consumer task, often the one responsible for building MQTT payloads, calls xQueueReceive and blocks until a new structure arrives. Neither task ever touches the other's memory directly, which is exactly what keeps the data from ever being read half-written.

typedef struct {
    uint8_t sensor_id;
    int64_t timestamp_us;
    float value;
} sensor_reading_t;

QueueHandle_t reading_queue;

void producer_task(void *pvParameters) {
    sensor_reading_t reading;
    for (;;) {
        reading.sensor_id = 1;
        reading.timestamp_us = esp_timer_get_time();
        reading.value = read_temperature();
        if (xQueueSend(reading_queue, &reading, pdMS_TO_TICKS(100)) != pdTRUE) {
            // Queue was full even after waiting; log and drop the reading.
        }
        vTaskDelay(pdMS_TO_TICKS(1000));
    }
}

void consumer_task(void *pvParameters) {
    sensor_reading_t reading;
    for (;;) {
        if (xQueueReceive(reading_queue, &reading, portMAX_DELAY) == pdTRUE) {
            // Forward reading for MQTT publish or logging.
        }
    }
}

void app_main(void) {
    reading_queue = xQueueCreate(10, sizeof(sensor_reading_t));
    xTaskCreate(producer_task, "producer", 2048, NULL, 5, NULL);
    xTaskCreate(consumer_task, "consumer", 2048, NULL, 5, NULL);
}

Notice the timeout passed to xQueueSend. A common mistake is to always pass portMAX_DELAY, which blocks forever if the queue stays full, or always pass 0, which silently drops data the instant the queue backs up even slightly. A short, deliberate timeout like 100 milliseconds gives the consumer a reasonable chance to catch up without freezing the producer task indefinitely. Whatever choice you make, always check the return value. A queue send or receive that fails without being checked is a bug that only shows symptoms much later, usually as a mysterious gap in sensor history that takes an afternoon to trace back to a queue that quietly overflowed.

Queues are also the standard way to move data out of an interrupt service routine. ISRs run at a special execution context and cannot call most FreeRTOS functions directly, including xQueueSend. Instead, ESP-IDF provides interrupt-safe variants ending in FromISR, such as xQueueSendFromISR. The ISR design rules chapter covers this pattern in more depth as part of deferring work from ISRs to tasks, but the queue itself is the same structure described here. The short version worth remembering now: a GPIO interrupt service routine should do almost nothing except push a small piece of data (or sometimes just an event marker) into a queue and return, leaving all real processing to a waiting task.

Queues are not limited to a single producer and single consumer. Several tasks can send to the same queue, and several tasks can receive from it, with FreeRTOS handling the arbitration. This makes queues useful as a simple work-distribution mechanism: multiple sensor-reading tasks can all funnel their results into one shared queue consumed by a single task responsible for formatting and sending data over the network. The one caveat is ordering. If three producers write to the same queue, items come out in the order they were sent across all producers combined, not grouped by sender, so include a sensor ID field in the item itself if the consumer needs to know where a given reading came from.

A frequent point of confusion for someone coming from Arduino is the idea of copying data into and out of a queue, rather than passing a pointer. FreeRTOS queues store a byte-for-byte copy of whatever structure you send, sized exactly as declared at creation time. This is deliberate: it avoids a whole class of bugs where a producer task reuses or frees a buffer that a consumer still expects to read from. The tradeoff is that large items are expensive to copy repeatedly. For anything bigger than a small structure, such as a full sensor data buffer or a string, it is usually better to allocate the data separately and send only a pointer through the queue, while being careful about who owns and eventually frees that memory.

Checking queue state without blocking is sometimes useful, for example to decide whether a producer task should throttle itself before even attempting a send. The function uxQueueMessagesWaiting returns the current number of items sitting in a queue, letting you build simple backpressure logic: if the queue is more than half full, slow down sampling until the consumer catches up. This is a lightweight way to avoid data loss without adding complexity like dynamic buffer growth, and it keeps memory use predictable, which matters on a microcontroller with limited RAM.

The table below summarizes the queue functions most commonly reached for when building the kind of producer-consumer pipeline described above, including the ISR-safe variants needed once interrupts enter the picture.

One design decision worth making early is queue depth, meaning how many items it can hold before xQueueSend starts timing out or failing. Too shallow a queue (say, a depth of one or two) means any brief delay on the consumer side causes dropped data, which is painful for a sensor node where every reading matters. Too deep a queue wastes RAM holding stale data and can hide a consumer that is falling permanently behind, masking a real performance problem instead of surfacing it. A reasonable starting point is to size the queue for a few seconds worth of expected data at the producer's sampling rate, then watch uxQueueMessagesWaiting during testing to see whether it tends toward empty (healthy) or toward full (a warning sign).

A practical scenario that ties this together: a battery-powered node sampling a temperature sensor every second, with Wi-Fi publishing happening only periodically to save energy (the duty cycle topic the low-power chapter builds on). A queue sized for roughly forty items absorbs the mismatch between the fast producer and the slow, bursty consumer without ever blocking the producer task. When the network task finally wakes and drains the queue, it can either send each reading individually or, more efficiently, pull all pending items and batch them into a single MQTT publish, reducing the number of expensive radio transmissions.

Before moving to timers, it helps to be explicit about what a queue does not do. It does not guarantee a message will be processed within any particular time frame, it only guarantees safe, ordered delivery once a task is ready to receive. It also does not protect a resource that multiple tasks access directly outside of the queue mechanism, such as a shared I2C bus handle. That job belongs to a mutex, covered in the section on semaphores, mutexes, and event groups below. Keeping these boundaries clear avoids reaching for a queue in situations that actually call for a different primitive, and vice versa.

Plenty of firmware tasks need to happen on a schedule rather than in direct response to incoming data: blinking a status LED every 500 milliseconds, checking whether a sensor has gone silent every 10 seconds, or triggering a periodic health report. In an Arduino sketch, this is typically handled with millis() comparisons scattered through loop(). In ESP-IDF, the cleaner tool is a software timer, a FreeRTOS facility that runs a callback function automatically after a specified delay, either once (one-shot) or repeatedly (periodic), without needing a dedicated task to sit and watch a clock.

ESP-IDF provides software timers as part of FreeRTOS, alongside a separate, lower-level ESP Timer facility built specifically for cases needing tighter timing precision or lower overhead than the FreeRTOS implementation offers^[2]. Both let a callback run without a hand-rolled polling loop, but they serve different needs and it is worth knowing which one fits a given job. FreeRTOS software timers are the right default for most application-level periodic work, since they integrate naturally with task priorities and the rest of the FreeRTOS API. ESP Timer is reached for when microsecond-level accuracy matters, such as precisely timing a sensor pulse width, or when a callback needs to run with less scheduling jitter than the FreeRTOS timer service can guarantee.

Behind the scenes, all FreeRTOS software timer callbacks actually execute inside a single dedicated task called the timer service task (sometimes called the daemon task), not inside the context of whichever task created the timer. This matters for one practical reason: a software timer callback must be short and must never block. If a callback calls something like vTaskDelay or waits on a queue with a long timeout, every other software timer in the entire application stalls behind it, because they all share that one service task. The correct pattern, echoing the deferred-work principle from ISR design, is to keep the callback itself trivial, typically just sending an item into a queue or setting a bit in an event group, and let a normal task pick up the actual work from there.

TimerHandle_t heartbeat_timer;
QueueHandle_t heartbeat_queue;

void heartbeat_callback(TimerHandle_t xTimer) {
    // Keep this fast: just signal, don't do real work here.
    static uint8_t tick = 0;
    xQueueSend(heartbeat_queue, &tick, 0);
}

void app_main(void) {
    heartbeat_queue = xQueueCreate(5, sizeof(uint8_t));
    heartbeat_timer = xTimerCreate(
        "heartbeat",
        pdMS_TO_TICKS(10000), // period: 10 seconds
        pdTRUE,               // auto-reload: periodic, not one-shot
        NULL,
        heartbeat_callback
    );
    xTimerStart(heartbeat_timer, 0);
}

The xTimerCreate call takes a human-readable name for debugging, the period in ticks (converted from milliseconds with the helper macro pdMS_TO_TICKS), an auto-reload flag that decides one-shot versus periodic behavior, an optional pointer to pass custom data into the callback, and the callback function itself. The timer does not actually start running until xTimerStart is called, which can happen immediately as shown above, or later, in response to some other event, such as starting a timeout countdown only after a Wi-Fi connection attempt begins.

One-shot timers are useful for timeout logic that an Arduino sketch would normally build with a stored millis() value and a manual comparison. Consider waiting for a sensor to respond after sending it a command, with a fallback if it never does. Instead of a polling loop checking elapsed time, a one-shot timer started alongside the command can fire a callback after, say, two seconds if no response queue item has arrived by then, which then signals an error condition. This removes the fallback timing logic entirely from the main task's code path, keeping that task focused on its primary job and freeing it to block efficiently while waiting.

Software timers can be stopped, restarted, or have their period changed at runtime with xTimerStop, xTimerReset, and xTimerChangePeriod. A practical use of xTimerReset is a watchdog-style pattern distinct from the hardware watchdog timer covered in the debugging chapter: a one-shot timer set to fire after, say, five seconds of inactivity, reset every time a new sensor reading successfully arrives. If the timer ever actually fires, it means five seconds passed without a reading, which the callback can use to flag the sensor as unresponsive and trigger a recovery action, again by signaling a task rather than doing the recovery work directly inside the callback.

A mistake worth calling out directly: creating a software timer does not guarantee it fires at exactly the requested interval under heavy system load. The timer service task has its own priority, and if higher-priority tasks keep the CPU busy, timer callbacks can be delayed. For most housekeeping tasks, like a periodic status check, this slight drift is irrelevant. For anything requiring precise, low-jitter timing, such as generating an accurately spaced waveform, ESP Timer or a hardware timer peripheral is the better tool, since the question stops being about scheduling convenience and becomes about timing accuracy.

Deleting a timer that is no longer needed, with xTimerDelete, frees the resources FreeRTOS allocated for it. This matters more than it might seem on a memory-constrained microcontroller, especially in firmware that creates and destroys timers dynamically, for example a temporary retry timer created fresh each time a network request is attempted. Leaving old timer handles around without deleting them is a quiet source of memory leaks that, unlike a crash, might not show symptoms for hours or days, right up until available heap runs low and something else in the system starts failing in a way that looks unrelated to timers at all.

Software timers also interact with low-power behavior in ways worth anticipating, even though deep sleep itself belongs to its own chapter. A periodic FreeRTOS software timer keeps the CPU from entering certain sleep states, since the scheduler needs to wake up and run the timer service task at each interval. For a battery-powered node designed around sleeping between measurements, this means any software timer left running unintentionally (for example, a debug heartbeat timer forgotten in production code) can quietly undermine the duty cycle design the whole device depends on for battery life, by preventing the system from sleeping as deeply or as long as intended.

Taken together, queues move data between tasks, and software timers trigger work on a schedule without dedicating a task purely to clock-watching. The next piece of the puzzle is coordination: making sure tasks that share a resource, or that need to wait on each other's state, do so without corrupting data or racing past a condition that has not actually been met yet. That is the job of semaphores, mutexes, and event groups.

Queues move data, but plenty of coordination problems in firmware have nothing to do with moving data at all. Sometimes a task simply needs to know that something happened, without needing to know any accompanying value, or needs exclusive access to a shared resource for a short stretch of time. FreeRTOS provides three primitives purpose-built for these situations: the semaphore for signaling and counting events, the mutex for protecting a shared resource from simultaneous access, and the event group for waiting on combinations of multiple independent conditions at once. Picking the right one for the job keeps firmware both correct and readable.

A binary semaphore behaves like a single-slot flag that a task can wait on until another task (or an ISR) signals it. Unlike a queue, it carries no payload, just the fact that an event occurred. A classic use is signaling a task that an interrupt occurred and real processing can begin, functioning as a lighter-weight alternative to a queue when no actual data needs to travel with the signal, only the occurrence itself. A counting semaphore extends this idea by tracking how many times an event has occurred, useful for things like limiting how many tasks can simultaneously access a pool of, say, three available buffers, where each successful take decrements an available count and each give increments it back.

SemaphoreHandle_t data_ready_sem;

void IRAM_ATTR gpio_isr_handler(void *arg) {
    BaseType_t higher_priority_task_woken = pdFALSE;
    xSemaphoreGiveFromISR(data_ready_sem, &higher_priority_task_woken);
    if (higher_priority_task_woken) {
        portYIELD_FROM_ISR();
    }
}

void worker_task(void *pvParameters) {
    for (;;) {
        if (xSemaphoreTake(data_ready_sem, portMAX_DELAY) == pdTRUE) {
            // Interrupt occurred; do the real work here, outside the ISR.
        }
    }
}

The ISR design and deferred-work chapters go into more depth on why keeping the actual GPIO interrupt service routine this short matters, but the semaphore pattern above is the mechanism that makes it possible: the ISR does almost nothing but give the semaphore, and the real logic lives safely inside worker_task, running at normal task priority with full access to the rest of FreeRTOS's API, which an ISR does not have.

A mutex looks similar to a binary semaphore in the FreeRTOS API but solves a fundamentally different problem: mutual exclusion, meaning making sure only one task at a time can execute a particular section of code or access a particular resource. The canonical example in ESP32 firmware is a shared I2C bus used by two different sensor-reading tasks. If both tasks try to issue I2C transactions at the same time, the bus traffic interleaves and both transactions fail or return garbage. Wrapping every I2C transaction with xSemaphoreTake on a mutex before the transaction and xSemaphoreGive after it ensures the two tasks take turns rather than colliding.

SemaphoreHandle_t i2c_mutex;

esp_err_t read_sensor_safely(uint8_t addr, uint8_t *out, size_t len) {
    esp_err_t result;
    if (xSemaphoreTake(i2c_mutex, pdMS_TO_TICKS(500)) == pdTRUE) {
        result = sensor_i2c_read(addr, out, len); // the actual I2C transaction
        xSemaphoreGive(i2c_mutex);
    } else {
        result = ESP_ERR_TIMEOUT;
    }
    return result;
}

A detail that trips up many people coming from a general semaphore mental model: a mutex created with xSemaphoreCreateMutex includes priority inheritance, a mechanism where, if a low-priority task is holding the mutex and a high-priority task is waiting for it, FreeRTOS temporarily boosts the low-priority task so it can finish and release the mutex sooner. A plain binary semaphore does not do this. Using a binary semaphore for mutual exclusion instead of a proper mutex can lead to a problem called priority inversion, where a high-priority task sits waiting far longer than expected because a lower-priority task holding the resource keeps getting preempted by unrelated medium-priority tasks. For anything that is really about protecting a shared resource, use xSemaphoreCreateMutex, not a binary semaphore.

An event group fills a gap that neither a queue nor a semaphore handles well: waiting on a combination of several independent conditions. An event group is essentially a set of bit flags (commonly 24 usable bits) that any task or ISR can set or clear, and that other tasks can wait on with flexible logic, either waiting for any one of several bits to become set, or waiting for all of a specified set of bits to become set together. A frequent real example is a startup sequence: a task that needs to begin only once both Wi-Fi has connected and an initial sensor calibration has completed, two events produced by two completely independent tasks with no natural queue relationship between them.

#define WIFI_CONNECTED_BIT BIT0
#define SENSOR_CALIBRATED_BIT BIT1

EventGroupHandle_t startup_events;

void main_task(void *pvParameters) {
    EventBits_t bits = xEventGroupWaitBits(
        startup_events,
        WIFI_CONNECTED_BIT | SENSOR_CALIBRATED_BIT,
        pdFALSE,  // don't clear bits on exit
        pdTRUE,   // wait for ALL bits, not just any one
        portMAX_DELAY
    );
    // Both conditions are now true; proceed with normal operation.
}

Mixing these primitives in a single small firmware project is normal and expected, not a sign of over-engineering. A realistic sensor node might use a mutex to guard the I2C bus, a queue to carry finished readings from a sampling task to a networking task, a binary semaphore to wake a worker task from a GPIO interrupt, and an event group to gate the main task until both Wi-Fi connection and initial sensor setup have completed. Each primitive does one job cleanly, and the combination reads far more clearly in code than a single tangle of global flags and polling loops ever could, which becomes especially valuable months later when debugging firmware nobody has looked at in a while.

With queues, software timers, semaphores, mutexes, and event groups all in place, firmware stops depending on a single growing loop checking flags and guessing at timing. Tasks instead describe exactly what they are waiting for and exactly what they need to protect, and FreeRTOS handles the rest. That foundation is what makes it safe to layer in interrupt-driven GPIO handling next, where the stakes for getting deferred work right rise sharply the moment real hardware events start arriving unpredictably.

Every GPIO pin in ESP-IDF is configured through a single structure passed to one function, rather than through several separate calls as in the Arduino API. The structure is gpio_config_t, and it bundles together the pin number, the direction (input, output, or both), whether internal pull-up or pull-down resistors are enabled, and which interrupt trigger type, if any, should be armed on that pin. Filling in this structure once and calling gpio_config() replaces the separate pinMode() and attachInterrupt() calls a sketch would have used. The benefit of bundling these settings is that the hardware receives one consistent configuration, instead of several incremental calls that could leave the pin in an undefined state between them.

A basic input configuration for a push button looks like this in practice:

gpio_config_t io_conf = {
    .pin_bit_mask = (1ULL << GPIO_NUM_4),
    .mode = GPIO_MODE_INPUT,
    .pull_up_en = GPIO_PULLUP_ENABLE,
    .pull_down_en = GPIO_PULLDOWN_DISABLE,
    .intr_type = GPIO_INTR_NEGEDGE
};
gpio_config(&io_conf);

The pin_bit_mask field uses one bit per GPIO number, which is why it is built with a bit shift rather than passed as a plain integer. This design lets a single call configure several pins at once if they all share the same mode and trigger settings, which is useful when a board has a bank of identical switches or status lines. The intr_type field in this example, GPIO_INTR_NEGEDGE, arms the interrupt to fire on a falling edge, the moment the pin goes from high to low. That matches a button wired to pull the pin low when pressed, with the internal pull-up resistor holding the pin high the rest of the time.

Trigger types are not limited to a single edge. ESP-IDF supports rising edge (GPIO_INTR_POSEDGE), falling edge (GPIO_INTR_NEGEDGE), both edges (GPIO_INTR_ANYEDGE), and level-based triggers (GPIO_INTR_LOW_LEVEL, GPIO_INTR_HIGH_LEVEL). The choice depends entirely on the signal being watched. A rotary encoder often needs both-edge detection to resolve direction correctly, while a signal that stays asserted until acknowledged, such as some sensor interrupt lines, is a better fit for a level trigger. Choosing the wrong trigger type is a common source of missed or duplicated events, so it helps to sketch the expected waveform on paper before picking one.

Output pins follow the same structure with mode set to GPIO_MODE_OUTPUT and intr_type set to GPIO_INTR_DISABLE, since an output pin has no incoming signal to trigger on. Writing to an output pin afterward uses gpio_set_level(GPIO_NUM_5, 1), which is functionally equivalent to the Arduino digitalWrite() call but operates directly on the ESP-IDF driver layer. One detail that trips up newcomers from Arduino is that some GPIO numbers on the ESP32 are reserved or restricted, often because they are wired internally to flash memory or used during boot. Consult the documentation for the specific chip before wiring anything to an unfamiliar pin number^[2].

Pull-up and pull-down resistors deserve a second look, because getting them wrong produces flaky, intermittent bugs rather than a clean failure. An input pin left floating, with no pull resistor enabled and nothing externally driving it, will pick up electrical noise and can register phantom transitions that look exactly like real button presses. Enabling GPIO_PULLUP_ENABLE on a button pin wired to ground when pressed removes that ambiguity: the pin sits reliably high until the button actively pulls it low. If the hardware already includes an external pull resistor, enabling the internal one as well usually causes no harm, but check the schematic rather than guessing, since some sensor outputs are push-pull and should not be pulled in either direction.

Debouncing deserves mention here, since a mechanical button does not transition cleanly from released to pressed. It bounces, generating several rapid transitions within a few milliseconds before settling. A naive ISR that reacts to every edge will often see three or four interrupts from a single human press. The fix belongs partly in hardware (a small capacitor across the switch) and partly in software, typically by timestamping the first interrupt and ignoring further ones for a short window, an approach covered in the next section once the ISR itself is in place. Treat debouncing as an expected part of the design from the start, not a patch applied after a confusing bug report.

The following checklist summarizes the decisions to make before writing a single line of ISR code, since getting the configuration stage right prevents a large share of interrupt problems later.

Once the pin is configured, the interrupt still will not fire until the global GPIO interrupt service is installed and a handler is attached to that specific pin. That installation step, along with the strict limits on what the handler itself may do, is the subject of the next section. It is tempting to treat GPIO configuration as a minor setup detail to rush through, but a surprising share of ESP-IDF interrupt bugs trace back to a mismatched trigger type or a missing pull resistor rather than anything inside the ISR.

A final practical point concerns reconfiguring a pin at runtime, which some projects need when a single physical pin serves different roles at different times. Calling gpio_config() again with new settings is safe, but doing so from inside an interrupt context is not, since configuration functions are not designed to run inside an ISR. If a pin's role needs to change dynamically, that change belongs in a regular task, triggered by a message from the interrupt rather than performed directly by it. This is a small preview of the deferred work pattern explored later in the chapter, and it illustrates a rule that applies broadly: almost anything beyond reading or writing a bit level should happen outside the interrupt itself.

An interrupt service routine runs outside the normal flow of FreeRTOS task scheduling, which is exactly what makes it both useful and dangerous. When a GPIO interrupt fires, the processor pauses whatever task was running, jumps to the ISR, executes it, and then resumes. This happens regardless of task priorities, locks held, or what the interrupted code was in the middle of doing. That bypass is the reason interrupts react so quickly to real-world events, and also the reason a careless ISR can corrupt data structures, deadlock the system, or silently introduce bugs that only appear under specific timing conditions.

Before any pin-level interrupt handler can run, the GPIO interrupt service itself has to be installed once, typically near the start of app_main, using gpio_install_isr_service(0). The argument is a set of interrupt allocation flags, and passing 0 accepts the defaults, which is sufficient for most projects. After that single call, individual pins get their own handlers attached with gpio_isr_handler_add(), passing the pin number, a function pointer, and an optional argument pointer that gets passed back into the handler each time it fires. This two-step design, one shared service plus per-pin handlers, lets a single project register interrupts on several pins without installing a new service for each one.

static void IRAM_ATTR button_isr_handler(void *arg) {
    uint32_t gpio_num = (uint32_t) arg;
    xQueueSendFromISR(button_evt_queue, &gpio_num, NULL);
}

gpio_install_isr_service(0);
gpio_isr_handler_add(GPIO_NUM_4, button_isr_handler, (void*) GPIO_NUM_4);

Notice the IRAM_ATTR attribute on the handler function. This tells the compiler to place that function's code in internal RAM rather than flash, which matters because flash access can be temporarily unavailable during certain operations, such as a write to the flash itself. With the default flags shown here, ESP-IDF simply holds a GPIO interrupt back until the flash operation finishes, which adds latency. An interrupt allocated with the ESP_INTR_FLAG_IRAM flag runs even then, and if its handler sits in flash the chip crashes. Marking GPIO interrupt handlers with IRAM_ATTR is the convention Espressif's own examples follow, and it becomes a hard requirement the moment an interrupt is allocated with ESP_INTR_FLAG_IRAM.

That last point about FromISR functions deserves a direct explanation. FreeRTOS provides two versions of many of its functions: a normal version meant for use inside tasks, and an ISR-safe version with FromISR appended to the name, such as xQueueSendFromISR or xSemaphoreGiveFromISR. The ISR versions skip steps that are unsafe at interrupt level, such as potentially blocking the caller, and instead take an extra output parameter that signals whether the operation requires a context switch once the ISR finishes. Mixing these up, calling the normal xQueueSend from inside an ISR, is a mistake that may work during testing and then fail unpredictably once real timing pressure appears.

The pxHigherPriorityTaskWoken parameter found on every FromISR function is worth understanding rather than treating as boilerplate. When an ISR wakes up a higher-priority task, for instance by sending data to a queue that an important task is blocked waiting on, FreeRTOS cannot switch to that task immediately mid-interrupt. Instead, the FromISR call records that a higher-priority task has become ready, and the ISR is responsible for checking that flag at the end and triggering a context switch if needed, usually via portYIELD_FROM_ISR(). Skipping this step does not crash anything immediately, but it introduces unnecessary latency, since the woken task waits until the next scheduler tick instead of running right away.

Interrupt latency itself is worth a concrete mental model. Every interrupt that fires adds some fixed overhead before the handler code even starts: saving processor state, looking up the right handler, and preparing to return. Keeping the handler itself to a handful of instructions, reading the pin state, packaging a timestamp or pin number, and signaling a queue or semaphore, keeps that overhead from compounding into a noticeable delay. A handler that instead loops over an array, formats a string, or waits on a lock turns a microsecond-scale event into a potentially millisecond-scale stall, during which every other interrupt on that same priority level is blocked from running.

Debouncing, mentioned earlier, is a good illustration of where the discipline of a minimal ISR pays off. Rather than filtering bounce inside the handler with delays or loops, the cleanest approach stores a timestamp from esp_timer_get_time() at each interrupt and lets the receiving task compare that timestamp against the last accepted press, discarding anything within a short window. This keeps the ISR itself down to reading a value and sending it onward, while the actual decision about what counts as a real press happens in ordinary task code where blocking calls, comparisons, and even logging are perfectly safe.

A useful way to think about ISR design is as a strict contract: the ISR observes the event and hands off a minimal, self-contained record of what happened, and nothing more. The steps below lay out that contract as a repeatable procedure for any new interrupt added to a project.

One more subtlety concerns shared interrupt lines and multiple pins triggering the same type of event, such as several buttons feeding into one logical "input changed" handler. Passing a distinct context pointer to each call of gpio_isr_handler_add(), as shown in the earlier example with the GPIO number itself cast to a pointer, lets one handler function serve several pins while still knowing which pin fired. This avoids writing a near-duplicate handler for every pin, at the cost of a small amount of extra logic in the single shared handler to interpret that context value correctly.

Testing an ISR in isolation is harder than testing ordinary task code, since the usual tools like breakpoints and printed logs are either unavailable or risky inside interrupt context. A practical approach is to keep the ISR so simple that it is essentially unlikely to contain bugs, a timestamp read and a queue send, and push all meaningful logic and all debugging output into the task that receives the queue message. That task can log freely, step through logic with a debugger, and fail loudly without any risk of destabilizing the interrupt path itself. This division of responsibility is exactly the deferred work pattern explored next, and it is the single most important habit to carry out of this chapter.

Deferred work means moving every meaningful decision and action out of the ISR and into a regular FreeRTOS task, with the ISR acting only as a trigger that wakes that task up. This is not a minor optimization, it is the structural answer to the constraints covered in the previous section. A task can block, log, call drivers, touch the network, and take as long as it needs, because it runs under the normal scheduler with normal priority rules, unlike an ISR which preempts everything. The pattern turns a fragile, constrained piece of code into a thin trigger, and moves the real work somewhere safe and flexible.

The most common hand-off mechanism is a FreeRTOS queue, already introduced for task-to-task communication, reused here as an ISR-to-task channel. The GPIO interrupt handler reads the pin number or a timestamp and sends it with xQueueSendFromISR(), while a dedicated task sits blocked on xQueueReceive() most of the time, consuming essentially no processor time until a message arrives. The moment the ISR sends something, the task wakes, processes the event, perhaps debounces it, logs it, updates application state, or signals another task through a separate queue, and then goes back to waiting. This is precisely the pattern recommended by Espressif's own examples for GPIO interrupt handling.

static QueueHandle_t gpio_evt_queue = NULL;

static void IRAM_ATTR gpio_isr_handler(void *arg) {
    uint32_t gpio_num = (uint32_t) arg;
    xQueueSendFromISR(gpio_evt_queue, &gpio_num, NULL);
}

static void gpio_task(void *arg) {
    uint32_t io_num;
    for (;;) {
        if (xQueueReceive(gpio_evt_queue, &io_num, portMAX_DELAY)) {
            printf("GPIO[%lu] interrupt, level: %d\n",
                   io_num, gpio_get_level(io_num));
        }
    }
}

This pattern has a counterpart for situations where the ISR does not need to pass any data at all, just signal that something happened. A binary semaphore fits that case well: the ISR calls xSemaphoreGiveFromISR(), and a task blocked on xSemaphoreTake() wakes up without needing to know anything beyond the fact that the event occurred. This is lighter weight than a queue when the event itself carries no information, for example a single interrupt pin dedicated to one specific sensor's data-ready signal, where the only thing the task needs to know is "go read the sensor now."

Choosing between these three, already introduced for general task synchronization, comes down to how much information the interrupt needs to convey and how many distinct event sources feed into the same task. A queue is the most flexible default when in doubt, since it generalizes naturally to multiple pins and carries whatever payload is useful, from a raw pin number to a packed structure with a timestamp and a debounce state. An event group suits a design where a task wants to wait on several independent conditions and react differently depending on which one, or which combination, becomes true.

The receiving task's design matters as much as the ISR's. A common mistake is writing the task so that it does all its processing immediately inline, including slow operations like calling an I2C sensor read or publishing over MQTT, directly inside that same loop. This works, but it means the task cannot consume a second interrupt event while it is still busy with the first, which can cause messages to pile up in the queue or, worse, be dropped if the queue fills. For most sensor-node style projects this is acceptable, since human-triggered events like button presses are slow compared to firmware timescales, but it is worth sizing the queue deliberately rather than leaving it at a default of one.

Priority assignment for the receiving task deserves a deliberate choice rather than a default. A task that reacts to a time-sensitive interrupt, such as a safety-relevant input, generally deserves a higher priority than background tasks like periodic logging, so that the scheduler runs it promptly once the semaphore or queue signals. The task priority system already explored for general FreeRTOS design applies directly here, with the interrupt's urgency as the deciding factor, and the same cautions about priority inversion and task starvation apply equally.

One failure mode worth naming directly is forgetting to re-enable interrupts after disabling them temporarily, which some drivers do with gpio_intr_disable() to pause handling during a sensitive operation. If a task disables a pin's interrupt to safely read a shared variable and then crashes or returns early before re-enabling it, that pin silently stops responding to real-world events, and the symptom looks exactly like a hardware fault rather than a software one. A safer pattern avoids disabling interrupts for synchronization altogether, relying instead on the queue or semaphore hand-off itself to make shared data access safe, since the ISR never touches application state directly in a well-designed system.

Another practical consideration is what happens when several different pins should trigger logically similar but distinct actions, a scenario common in a sensor node with multiple buttons or multiple sensor interrupt lines. Rather than creating a separate task per pin, which wastes stack memory and adds unnecessary scheduling overhead, a single task reading from one shared queue, with each message carrying the originating pin number, usually scales better. The task's main loop becomes a short dispatch: read the pin number from the queue, then branch to the appropriate handling logic based on which pin it was, keeping the number of actual FreeRTOS tasks in the project small and purposeful.

Put together, GPIO configuration, a disciplined ISR, and a deferred-work task form a complete, repeatable pattern that scales from a single debounced button to a sensor node juggling several interrupt-driven inputs at once. The pattern also connects directly to work still ahead: a sensor's own data-ready interrupt line, read over the I2C bus or SPI master driver, follows exactly this same shape, with the ISR doing nothing but flagging that fresh data is available and a task doing the actual bus transaction. Carrying this discipline forward consistently, rather than treating each new interrupt as a one-off, is what keeps a growing firmware project from accumulating the kind of timing bugs that take days to trace back to a single careless line inside a handler.

I2C organizes communication around two wires shared by every device on the bus: a data line called SDA and a clock line called SCL. The ESP32 I2C interface supports synchronous, half-duplex bus communication over these two lines, and both lines require pull-up resistors to function correctly.^[1] Without those resistors, both lines float at an undefined voltage when no device is actively pulling them low, and the bus produces garbled or missing data. Many sensor breakout boards include these resistors already, but if you are wiring a bare sensor chip directly, you need to add them yourself, typically in the range suggested by the sensor's datasheet.

Each device on an I2C bus answers to a seven-bit address, which lets several sensors share the same two pins without interfering with each other, as long as no two devices on the bus share the same address. Many sensor families offer an address pin you can tie high or low to pick between two fixed addresses, which is how you put two identical sensors on one bus. Before wiring anything, check the sensor's datasheet for its default address and confirm it does not collide with another device you already plan to attach. A quick bus scan at startup, which tries each possible address and checks for an acknowledgment, is a reliable way to confirm wiring before you write any sensor-specific code.

Setting up the I2C driver in ESP-IDF involves configuring a bus handle with the GPIO numbers for SDA and SCL, the desired clock speed, and whether internal pull-ups should be enabled in addition to any external resistors. A typical initialization step looks like this:

i2c_master_bus_config_t bus_config = {
    .i2c_port = I2C_NUM_0,
    .sda_io_num = GPIO_NUM_21,
    .scl_io_num = GPIO_NUM_22,
    .clk_source = I2C_CLK_SRC_DEFAULT,
    .glitch_ignore_cnt = 7,
};
i2c_master_bus_handle_t bus_handle;
i2c_new_master_bus(&bus_config, &bus_handle);

Once the bus exists, add each sensor as a device on that bus with its own address and clock speed, then issue read and write transactions against that device handle rather than against the bus directly. This design matters because it lets the driver manage timing and arbitration between multiple devices sharing the same two pins, without your code tracking which sensor spoke last. A typical sensor read is a write of a register address, followed by a read of one or more bytes back, often called a write-then-read transaction. Many sensors expose their data as several registers that must be read together and recombined, such as a multi-byte temperature value split across a high byte and a low byte.

Clock speed choices matter more than they might seem at first glance. Standard mode is the safest default for long wires, breadboards, or sensors without clear timing specifications. Faster modes exist for sensors that support them, but pushing the clock too high on a noisy or long connection produces intermittent read failures that are hard to trace back to the bus itself. If a sensor read occasionally returns nonsense values or a transaction times out, lowering the clock speed is one of the first things worth trying, before suspecting the sensor or the code logic.

A second common failure mode is address collision or wiring mistakes that only show up intermittently. If two sensors share an address, both will answer at once, their replies will mix on the bus, and readings come back corrupted in ways that can still look plausible. Running a bus scan each time firmware starts, logging every address that acknowledges, is a cheap habit that catches these problems early, long before they turn into a frustrating debugging session weeks into a project.

A worked example clarifies how these pieces fit together. Suppose a humidity sensor exposes its measurement in two registers starting at address 0x00. The task reading this sensor would open a device handle at the sensor's I2C address, issue a transaction that writes the register address 0x00 and then reads two bytes back, and then combine those two bytes into a sixteen-bit raw value. That raw value is then converted using the formula given in the sensor's datasheet, often something like humidity = (raw / 65535.0) * 100, to produce a percentage reading. None of this math is unique to ESP-IDF, it is the same conversion an Arduino library would have performed invisibly inside a function call.

The callout below highlights a mistake that trips up many people moving from Arduino libraries to raw I2C transactions.

Error handling deserves the same seriousness you give to the read itself. Every I2C function in ESP-IDF returns a status code, and ignoring it means a failed transaction looks identical to a successful one that happens to return zero. Check the return value after every transaction, and when a sensor read fails, decide deliberately whether to retry immediately, skip this cycle and try again later, or treat repeated failures as a sign the sensor has become disconnected. A sensor node that silently reports zero for a disconnected humidity sensor is worse than one that logs an error and skips that reading, because zero looks like valid data to anything downstream.

Sharing the I2C bus across multiple tasks introduces a concurrency question that deserves the same discipline covered in the chapter on synchronization primitives. If two tasks both try to read from the bus at the same time, their transactions can interleave in ways that corrupt both readings. The safest pattern is to give one task sole ownership of the bus, with other tasks requesting readings through a queue and receiving results back the same way, rather than letting every task call the I2C driver directly. This mirrors the general rule from earlier chapters: structure firmware as tasks that communicate through queues, not as code that reaches into shared hardware from several places at once.

Before moving to the next sensor on your bus, it helps to pause and confirm the fundamentals are solid, since a shaky I2C foundation causes confusing symptoms much later in a project. The checklist below captures the points worth verifying before trusting any I2C sensor reading in a larger system.

Once these basics hold, I2C becomes one of the most convenient ways to grow a sensor node, since adding a second or third sensor costs no additional pins beyond the first two. That scalability is exactly why so many breakout boards default to I2C, and why it is worth the extra setup effort compared to the simplicity of a single analog pin.

SPI trades the shared-wire economy of I2C for raw speed and simpler timing, at the cost of using more pins as the number of devices grows. A standard SPI connection uses four signal lines: a clock line, a master-out-slave-in data line, a master-in-slave-out data line, and a chip select line that tells a specific device when to listen. Multiple devices can share the clock and data lines, but each one needs its own chip select pin, so a bus with four sensors needs four chip select pins in addition to the three shared lines. The ESP-IDF SPI master driver supports transactions with peripheral devices sharing a bus, subject to device and task-access constraints that keep multiple devices from interfering with each other.^[2]

Setting up an SPI bus in ESP-IDF follows a similar two-step pattern to I2C: configure the bus itself with its three shared pins, then add each device to that bus with its own chip select pin and clock speed. A typical bus initialization looks like this:

spi_bus_config_t bus_cfg = {
    .mosi_io_num = GPIO_NUM_23,
    .miso_io_num = GPIO_NUM_19,
    .sclk_io_num = GPIO_NUM_18,
    .quadwp_io_num = -1,
    .quadhd_io_num = -1,
};
spi_bus_initialize(SPI2_HOST, &bus_cfg, SPI_DMA_CH_AUTO);

spi_device_interface_config_t dev_cfg = {
    .clock_speed_hz = 1000000,
    .mode = 0,
    .spics_io_num = GPIO_NUM_5,
    .queue_size = 1,
};
spi_device_handle_t handle;
spi_bus_add_device(SPI2_HOST, &dev_cfg, &handle);

The clock mode setting, a number selecting the clock polarity and phase in the configuration above, determines the polarity and phase of the clock signal relative to the data lines, and this must match what the sensor expects exactly. Getting the mode wrong does not crash anything, it simply produces readings that look plausible but are subtly wrong, often shifted by one bit or inverted, which makes this an easy mistake to miss during a quick test. Always check the sensor's datasheet for its required mode before wiring begins, since guessing and checking four possible modes against real sensor output is a slow way to debug a problem that a single datasheet lookup would have avoided.

Because SPI devices share the data and clock lines but each get a private chip select, two tasks reading from different SPI devices on the same bus still need the same ownership discipline as I2C. The driver itself manages per-transaction access to the physical lines, but if two tasks both call into the SPI driver without coordination, their transactions can still interleave badly depending on how the driver queues them. The safer pattern, again, is one task per physical bus, with other tasks requesting reads through a queue, exactly mirroring the I2C guidance above but applied to a different peripheral.

UART takes a completely different shape from both I2C and SPI, because it carries no addressing or bus-sharing concept at all. Two devices connect directly through a transmit line and a receive line, with the transmit pin of one device wired to the receive pin of the other, and ground shared between them. The ESP32 has three UART controllers, each configurable for serial communication parameters such as baud rate, data bits, stop bits, and parity.^[3] One of those three is typically already in use for the console output you have been reading in your terminal since the first chapter, which leaves the remaining two free for sensor modules like GPS receivers or other serial peripherals.

Configuring a UART port in ESP-IDF means specifying the baud rate and frame format, then installing a driver with a receive buffer, since incoming bytes can arrive at any time and need somewhere to sit until a task reads them. A typical configuration looks like this:

uart_config_t uart_config = {
    .baud_rate = 9600,
    .data_bits = UART_DATA_8_BITS,
    .parity = UART_PARITY_DISABLE,
    .stop_bits = UART_STOP_BITS_1,
    .flow_ctrl = UART_HW_FLOWCTRL_DISABLE,
};
uart_param_config(UART_NUM_1, &uart_config);
uart_set_pin(UART_NUM_1, TX_PIN, RX_PIN, UART_PIN_NO_CHANGE, UART_PIN_NO_CHANGE);
uart_driver_install(UART_NUM_1, 1024, 0, 0, NULL, 0);

The baud rate must match exactly between both devices, since UART has no clock line to keep sender and receiver synchronized the way I2C and SPI do. A GPS module fixed at one baud rate wired to a UART port configured for a different rate produces a stream of garbled bytes that looks like random noise, with no clear error message pointing at the mismatch. If a UART link produces nothing but gibberish, checking the baud rate against the device's documentation is the first thing to try, well before suspecting wiring or the driver configuration.

Reading from a UART device inside a task usually means blocking on a receive call with a timeout, waiting for bytes to accumulate in the driver's internal buffer before parsing them into a meaningful message, such as a GPS sentence ending in a newline character. Because the data arrives as an unstructured stream rather than discrete transactions like I2C or SPI, the task reading a UART device typically needs its own small parsing logic to find message boundaries, rather than relying on the driver to hand back one complete reading at a time. This is a meaningful mental shift from a bus with built-in structure, and it is where many UART integration bugs come from: a parser that assumes a message always arrives intact in one read, when in practice it can arrive split across two or three reads.

The decision tree below gives a quick way to pick between these three buses when starting a new sensor integration, based on the two questions that matter most: how many devices need to share wiring, and whether the sensor's interface has addressing at all.

Mixing all three buses in one sensor node is common and perfectly reasonable, since different sensors on the same board often come with different interfaces built in. A node might read a humidity sensor over I2C, a fast accelerometer over SPI, and a GPS module over UART, all at once, each handled by its own dedicated reading task that passes results back through a queue to a coordinating task, exactly the structure covered when discussing communication between tasks. Keeping each bus's driver calls confined to a single task avoids the concurrency hazards described above, no matter how many different peripherals a single sensor node ends up carrying.

Analog sensors skip the structured messaging of the three buses above entirely and instead present a raw voltage that varies continuously with whatever they are measuring. The ESP32's ADC converts that voltage into a digital number your code can use, but the relationship between the raw number and the real-world voltage is not as fixed as it might seem from Arduino's analogRead(). ESP-IDF ADC drivers support one-shot and continuous sampling, and calibration APIs can convert raw readings to voltage estimates.^[4] Understanding the difference between these two sampling modes, and why calibration matters, prevents a class of bugs that look like sensor noise but are actually unaccounted-for measurement error.

One-shot mode reads a single value on demand, which fits a sensor node that wakes up, takes a handful of readings, and goes back to sleep, matching the duty cycle pattern used throughout a battery-powered design. Continuous mode instead streams samples at a fixed rate into a buffer, which suits applications that need to catch fast-changing signals, like audio-rate sampling or vibration monitoring, where a single reading every few seconds would miss the signal entirely. Most sensor node projects built around periodic measurements, as described in this book, only need one-shot mode, and reaching for continuous mode without that need adds complexity and power draw without a clear benefit.

A one-shot read in ESP-IDF looks like this, using a handle configured with the desired ADC unit and channel:

adc_oneshot_unit_handle_t adc_handle;
adc_oneshot_unit_init_cfg_t init_cfg = { .unit_id = ADC_UNIT_1 };
adc_oneshot_new_unit(&init_cfg, &adc_handle);

adc_oneshot_chan_cfg_t chan_cfg = {
    .atten = ADC_ATTEN_DB_12,
    .bitwidth = ADC_BITWIDTH_DEFAULT,
};
adc_oneshot_config_channel(adc_handle, ADC_CHANNEL_6, &chan_cfg);

int raw_value;
adc_oneshot_read(adc_handle, ADC_CHANNEL_6, &raw_value);

The raw value returned here is just a number within the ADC's digital range, not a voltage. Converting it into a meaningful voltage requires a calibration step, because the ADC's response is not perfectly linear across its full input range, and two individual chips can differ slightly from each other even within the same ESP32 model. ESP-IDF provides calibration APIs that build a conversion scheme, using either a factory-stored calibration value burned into the chip or a curve-fitting scheme depending on what the target supports, and then expose a function to turn a raw reading into millivolts. Skipping calibration and instead doing your own linear math based on the ADC's nominal bit width will work approximately, but it ignores the real nonlinearity near the extremes of the input range, which is exactly where many sensor applications need the most accuracy.

Attenuation settings control what range of input voltage the ADC can measure accurately, and choosing the wrong one is a common source of readings that seem to clip or compress near the top of the expected range. A low attenuation setting measures a narrow voltage range with better resolution, while a higher attenuation setting widens the measurable range at some cost to precision. If a sensor's output voltage sits near the top of the chip's full supply range, a low attenuation setting will clip it, making the reading plateau even as the actual voltage keeps rising. Matching the attenuation setting to the sensor's actual expected output range, rather than always reaching for the widest setting out of caution, produces noticeably more usable readings.

Consider a simple worked example: a light-dependent resistor wired in a voltage divider, where the output voltage swings across most of the supply range as light levels change. Reading this with one-shot mode, calibrating the raw value into millivolts, and then converting that voltage into an approximate light level using the voltage divider formula, gives a far more trustworthy result than treating the raw ADC number as directly proportional to light. The calibration step corrects for the chip's own nonlinearity, while the attenuation setting determines whether the divider's full voltage swing is even visible to the ADC in the first place. Skipping either step means the final number drifts from board to board in ways that have nothing to do with the actual sensor.

Noise is another practical concern that calibration alone does not solve. A single raw ADC reading, especially from a sensor with a high-impedance output or a long wire run, can jump around from sample to sample even when the real-world value is stable. Averaging several readings taken a few milliseconds apart, rather than trusting a single sample, smooths out much of this noise at the cost of a slightly longer measurement window, which is usually an easy trade to make for a sensor node that is not time-critical. A simple moving average over several samples is often enough to turn a jittery reading into a stable one, without adding meaningful delay to a wake-measure-sleep cycle.

Every one of these details, attenuation, calibration, and averaging, matters more or less depending on the specific ESP32 target and the specific ADC channel chosen, since not every GPIO pin supports ADC input, and some pins behave differently near the edges of their range. Before finalizing pin choices for an analog sensor, check your specific board's documentation for which pins map to which ADC channels and whether those channels carry any known restrictions, rather than assuming every analog-capable pin behaves identically. The right bus, the right pin, and the right clock speed depend on the sensor and board sitting in front of you, not on a universal rule that applies everywhere.

With I2C, SPI, UART, and ADC readings each handled by their own disciplined, task-owned code, a sensor node has everything it needs to gather real-world data reliably. What happens to that data next, how it leaves the device and reaches somewhere useful, depends on the networking layer built on top of these readings, where the same care about blocking calls and task ownership carries forward into joining a network and publishing results.

ESP-IDF provides Wi-Fi support through a driver and event system that is lower-level than the Arduino WiFi library but far more transparent about what is actually happening on the radio^[2]. Getting a device onto a network in station mode involves a sequence of steps, not a single function call. Initializing the network interface, creating the default Wi-Fi station, setting credentials, and starting the driver all happen before the ESP32 even attempts to associate with an access point. Every one of these steps can fail independently, and the framework expects you to notice.

The mechanism for noticing is the event loop. ESP-IDF's default event loop delivers Wi-Fi and IP events to a handler function you register, each carrying a specific meaning: station started, disconnected, got an IP address, lost an IP address. This is the same event-driven thinking used for GPIO interrupts and timer callbacks elsewhere in the framework, applied here to the radio instead of a pin. A handler that only logs these events is already more informative than most Arduino sketches ever were about their own connection state.

A practical connection flow looks like the steps below. Each step corresponds to a concrete call in the Wi-Fi driver API, and skipping one typically produces a cryptic error rather than a clean failure, so following the order matters.

The last step in that sequence is where most beginner firmware quietly fails in the field. A sketch-era mental model treats a lost connection as rare and catastrophic. In practice, Wi-Fi drops happen constantly: a router reboots, the device walks out of range for a few seconds, or the access point briefly reassigns channels. Firmware that does not call connect again after a disconnect event will simply sit there, radio idle, looking alive on a bench but silently dead in the field. The fix is a disconnect handler that always retries, ideally with a short backoff so it does not hammer a router that is itself recovering.

An event group, already covered as a FreeRTOS synchronization primitive, is the natural way to let a networking task wait for connectivity without polling. The Wi-Fi event handler sets a connected bit when the got-IP event arrives and clears it on disconnect. Any task that needs network access, whether an HTTP publisher or an MQTT client, blocks on that bit with xEventGroupWaitBits before attempting to send. This keeps networking logic out of the sensor-reading task entirely, preserving the separation of concerns that makes multitask firmware debuggable.

Reconnect logic needs a ceiling, not just a loop. Retrying forever at full speed can keep the radio in a high-power state indefinitely, which is especially costly on a battery-powered node designed around a duty cycle. A reasonable pattern increases the delay between attempts after repeated failures, and gives up after a bounded number of tries, falling back to a lower-power state rather than burning the battery hunting for a network that is not there. The exact backoff schedule depends on the device's tolerance for staleness, but capping retries is non-negotiable for anything running on a battery.

A device that retries forever at full power on a dead network is not resilient, it is slowly discharging its battery for no benefit.

Credentials deserve a brief word on handling. Hardcoding an SSID and password directly in source works for a bench prototype but becomes a liability the moment the firmware is shared or the network changes. Storing credentials in non-volatile storage, with a provisioning step separate from the main firmware image, keeps the application code clean and makes it possible to change networks without reflashing. This is a design decision worth making early, since retrofitting provisioning into firmware that assumes hardcoded credentials everywhere is tedious.

It helps to think about Wi-Fi connection state the same way you think about a wake source for deep sleep: not binary, but a small set of distinct states that your firmware must handle explicitly. The decision tree below sketches the branches a disconnect handler typically needs to consider.

Logging deserves a mention here even though a later chapter owns logging in depth. Tagging every Wi-Fi-related log line with a consistent log tag, something like "wifi_station", makes it trivial to filter the console output when a connection problem shows up weeks after a device shipped. Logging the disconnect reason code, the number of retry attempts, and the eventual IP address gives a field-debuggable trail without needing a debugger attached. This habit costs almost nothing to build in and saves real time later.

One subtlety worth internalizing: a device can have an IP address and still have no usable internet path, if the access point itself has lost its upstream connection. The got-IP event only confirms local network association, not end-to-end reachability. For firmware that depends on reaching a specific server, a lightweight connectivity check, such as a short HTTP request to a known endpoint, is a more honest signal than the IP event alone. This distinction becomes directly relevant in the next section, where the HTTP client assumes a working path to a server, not just a local address.

Once a device holds a stable IP address, the simplest way to move a sensor reading off the board is an HTTP request to a server. ESP-IDF's HTTP client API handles the request lifecycle: open a connection, set headers, write a body if needed, perform the request, and read the response^[3]. This maps closely to what an Arduino HTTP library did under the hood, but exposes each stage as a separate call, which means each stage can also fail independently and be handled on its own terms.

A typical telemetry POST starts with an esp_http_client_config_t structure specifying the target URL, then initializes a client handle from that configuration. For a JSON payload reporting a temperature reading, the method is set to POST, the content type header to application/json, and the body is written before the request is performed. The example below sketches the shape of this call, trimmed to the parts relevant to a sensor node rather than a full production client.

esp_http_client_config_t config = {
    .url = "https://example-telemetry.local/api/readings",
    .method = HTTP_METHOD_POST,
    .timeout_ms = 5000,
};
esp_http_client_handle_t client = esp_http_client_init(&config);

char payload[128];
snprintf(payload, sizeof(payload),
         "{\"temperature_c\": %.1f, \"humidity_pct\": %.1f}",
         temp_c, humidity_pct);

esp_http_client_set_header(client, "Content-Type", "application/json");
esp_http_client_set_post_field(client, payload, strlen(payload));

esp_err_t err = esp_http_client_perform(client);
if (err == ESP_OK) {
    int status = esp_http_client_get_status_code(client);
    ESP_LOGI("http_client", "POST status = %d", status);
} else {
    ESP_LOGW("http_client", "HTTP request failed: %s", esp_err_to_name(err));
}

esp_http_client_cleanup(client);

Three things in that snippet deserve attention beyond the happy path. The timeout is set explicitly rather than left to a default, because a sensor node that blocks indefinitely waiting on a stalled server defeats the entire duty-cycle design covered in the low-power chapter. The return value of esp_http_client_perform is checked separately from the HTTP status code, because a successful transport-level transaction can still carry a server-side error like a 500 response, and your firmware needs to tell those two failure modes apart. And the client handle is cleaned up unconditionally, in both the success and failure branches, since leaking handles on a long-running device eventually exhausts memory.

HTTPS changes very little about the code shape and a great deal about what happens underneath. Setting the URL scheme to https triggers a TLS handshake as part of connecting, and the client configuration needs either a trusted certificate bundle or a specific server certificate to validate against. Skipping certificate validation is possible in the configuration but should be treated as a debugging-only shortcut, never a shipped setting, since it leaves the device unable to detect a server impersonation attempt. For a sensor node reporting to a known, fixed endpoint, bundling that endpoint's certificate (or a certificate authority covering it) into the firmware image is the standard approach.

A callout is useful here because this is one of the most common sources of silent data loss in field deployments: treating a successful esp_http_client_perform call as proof the data arrived.

Retry and backoff logic for HTTP looks similar to the Wi-Fi reconnect pattern from the previous subchapter, but it operates at a different layer and on a different schedule. A single failed POST does not mean the network is down, it might mean the server briefly rejected the request. A reasonable pattern retries a small number of times with increasing delay, then drops the reading (or queues it for the next wake cycle, if the device sleeps between readings) rather than blocking the whole task indefinitely. Keeping a small in-memory queue of the last few unsent readings, bounded in size, lets a device recover gracefully from a brief server outage without losing every data point in between.

Where HTTP earns its place over MQTT, covered next, is in its fit with existing web infrastructure. If a project already has a REST API, a cloud function, or a simple logging endpoint, speaking HTTP means the sensor node integrates without any new server-side component. The cost is overhead: each request opens (or reuses) a connection, carries full HTTP headers, and for HTTPS repeats a TLS handshake unless the connection is kept alive across requests. For a device that wakes briefly, sends one reading, and goes back to deep sleep, that overhead can dominate the energy budget, since the low-power chapter discusses how Wi-Fi association time already consumes a disproportionate share of each wake cycle. This single cost comparison is where MQTT's design advantage becomes concrete, which the next subchapter picks up directly.

A quick decision point: for a device publishing one reading per wake cycle to a conventional backend, HTTP is often the more approachable path, since it requires no new server infrastructure and debugging it is as simple as inspecting the request with any standard web tool. For a device publishing more frequently, or integrating into a larger fleet alongside other devices and services, the connection overhead of repeated HTTP requests starts to matter more, and that is the scenario the next subchapter addresses.

Before moving on, a short checklist captures the habits worth locking in for any HTTP-based publisher, regardless of the exact payload format or endpoint.

One more practical detail: building the JSON payload by hand with snprintf, as shown above, is fine for a handful of fixed fields but becomes fragile as a payload grows. A small JSON library is a reasonable addition to a project's components once the payload includes nested objects, arrays of historical readings, or optional fields, since hand-built string formatting makes it easy to produce malformed JSON that a server silently rejects. This is a judgment call based on payload complexity, not a hard rule, and many sensor nodes never outgrow a simple formatted string.

MQTT solves a different problem than HTTP, even though both move data from a device to a server. Where HTTP is a request-response protocol built around individual transactions, MQTT is a persistent-connection publish-subscribe protocol: a device connects once, stays connected, and pushes small messages to named topics whenever it has something to report. ESP-MQTT implements this client behavior directly, handling the connection, the publish and subscribe calls, and the underlying keep-alive traffic that keeps the connection open^[4]. For a sensor node reporting readings repeatedly, this persistent connection avoids the repeated handshake overhead that makes frequent HTTP requests comparatively expensive.

The client is driven by an event-based model, matching the same pattern already used for Wi-Fi. You configure an esp_mqtt_client_config_t with the broker URI and credentials if needed, start the client, and register a handler for MQTT events: connected, disconnected, published, data received (for subscriptions), and error. The connected event is the signal to begin publishing, exactly as the got-IP event signals that HTTP requests can proceed. This consistency across subsystems is one of the quiet benefits of learning ESP-IDF's event model once and reusing it everywhere.

static void mqtt_event_handler(void *handler_args, esp_event_base_t base,
                                int32_t event_id, void *event_data) {
    esp_mqtt_event_handle_t event = event_data;
    switch (event->event_id) {
        case MQTT_EVENT_CONNECTED:
            ESP_LOGI("mqtt_client", "Connected to broker");
            xEventGroupSetBits(mqtt_event_group, MQTT_CONNECTED_BIT);
            break;
        case MQTT_EVENT_DISCONNECTED:
            ESP_LOGW("mqtt_client", "Disconnected from broker");
            xEventGroupClearBits(mqtt_event_group, MQTT_CONNECTED_BIT);
            break;
        case MQTT_EVENT_PUBLISHED:
            ESP_LOGI("mqtt_client", "Message id=%d published", event->msg_id);
            break;
        default:
            break;
    }
}

Publishing a reading once the connected bit is set is a single call: esp_mqtt_client_publish(client, topic, payload, length, qos, retain). The topic argument is a hierarchical string, conventionally something like sensors/greenhouse-01/temperature, which lets a broker and its subscribers filter messages by device and by reading type without any custom parsing logic on the server side. This naming convention is a design choice worth making consistent across a whole fleet of devices before deployment, since renaming topics later means updating every subscriber as well.

Quality of service, the qos parameter, is one of MQTT's genuine advantages over a plain HTTP POST. QoS 0 sends a message at most once with no acknowledgment, suitable for frequent readings where an occasional dropped message does not matter. QoS 1 guarantees at-least-once delivery through an acknowledgment and resend mechanism, appropriate for readings that matter individually, such as an alarm threshold crossing. QoS 2 adds exactly-once delivery guarantees at the cost of more protocol overhead, rarely necessary for routine telemetry. Choosing QoS 0 for a temperature reading sent every few minutes and QoS 1 for a rare but important event, like a low-battery warning, is a reasonable default split.

Retained messages are another MQTT feature with no direct HTTP equivalent, and they matter for a specific failure case: a newly subscribed dashboard or logging service that comes online after the sensor node has already published its last reading. Setting the retain flag on a publish tells the broker to hold that message and deliver it immediately to any new subscriber, so a dashboard shows the last known temperature right away instead of a blank value until the next scheduled reading. This is a small detail that noticeably improves the experience of any monitoring tool built on top of the telemetry stream.

Reconnect behavior for ESP-MQTT follows the same principle as Wi-Fi reconnects: the client library itself includes automatic reconnection logic by default, but your firmware still needs to react to the connected and disconnected events to gate publishing correctly. Publishing while disconnected either queues the message internally (depending on configuration) or fails outright, so gating publish calls behind the same kind of event group bit used for Wi-Fi connectivity avoids wasted calls and confusing log output. The two event groups, one for Wi-Fi and one for MQTT, can be combined into a single wait that only proceeds once both layers report ready.

A publish-subscribe model naturally extends to receiving commands, not just sending readings, which is a capability HTTP has no equivalent for without the device running its own server. Subscribing to a topic like sensors/greenhouse-01/command lets a backend push a configuration change, a reporting interval update, or a remote reboot request to the device without the device ever needing to poll for it. This arrives through the same event handler, as a data event carrying the topic and payload, and the handling logic belongs in whatever task owns device configuration, communicated there through a queue just as any other inter-task message would be.

Choosing between HTTP and MQTT for a given project is less about which is objectively better and more about matching the protocol to the deployment. A single prototype sending a reading every hour to a personal dashboard loses almost nothing by using a plain HTTPS POST, and gains the simplicity of not running a broker at all. A fleet of a dozen devices reporting every few seconds, with a backend that also needs to push configuration changes back down, benefits clearly from MQTT's persistent connections and bidirectional topic model. Many real sensor nodes end up using both: MQTT for routine telemetry, and an occasional HTTPS call for something heavier, like uploading a batch of buffered readings after recovering from an extended outage.

Whichever protocol carries the data, the pattern underneath stays the same as everywhere else in this book: a dedicated networking task owns the connection, a queue feeds it readings from the sensor task, and event bits gate what that networking task is allowed to attempt at any given moment. That separation is what makes the difference between a sketch that usually works and firmware that keeps reporting reliably through the kind of network interruptions every real deployment eventually faces, the exact concern the next chapter's duty cycle design has to account for when deciding how long a wake cycle should wait for that connection to succeed.

ESP-IDF exposes two main low-power states beyond normal active operation: light sleep and deep sleep, with the set of supported wake sources depending on the specific target hardware^[1]. The two modes sit at very different points on the tradeoff between power savings and how much state survives the sleep. Choosing between them is the first decision in any battery-powered design, and it shapes everything downstream, from how you structure your FreeRTOS tasks to how you handle reconnecting to Wi-Fi afterward.

Light sleep pauses the CPU and halts most peripherals, but keeps RAM powered and keeps enough of the chip's state intact that execution can resume from exactly where it stopped, as though from a pause button. FreeRTOS tasks, their stacks, global variables, and open peripheral configurations all survive. The tradeoff is that light sleep still draws noticeably more current than deep sleep, because RAM retention and several peripherals remain powered to make that instant resume possible. Light sleep suits situations where you need to wake very quickly and frequently, such as a device listening for short radio windows, more than situations where you are trying to stretch a battery across months.

Deep sleep goes much further. It powers down the CPU, most RAM, and most peripherals, leaving only a small set of circuits alive: the RTC (real-time clock) peripherals, a small amount of RTC memory, and the wake-source logic that watches for whatever event should end the sleep. This is where the dramatic power savings live, often an order of magnitude or more below light sleep. The cost is that deep sleep is effectively a reset from the application's point of view. Your FreeRTOS tasks, your heap contents, your open Wi-Fi connection, none of it survives. Waking from deep sleep runs the bootloader and app_main again, just as though the board had been power-cycled.

That reset-like behavior is the single most important thing to internalize about deep sleep, because it overturns assumptions built up through the rest of this book. The task structures, queues, and event groups from earlier chapters exist for the lifetime of one wake cycle, not across sleep boundaries. Anything that must survive a deep sleep, a reading count, a calibration value, a flag marking whether Wi-Fi provisioning already happened, has to be written into RTC memory or flash before sleeping, because ordinary heap and stack memory is gone the moment deep sleep begins. Designing around this constraint early saves a lot of confusion later, when a variable that should still hold its value turns out to have reset to zero.

A small set of RTC memory survives deep sleep specifically because the RTC domain stays powered. ESP-IDF provides attribute macros to place variables in that retained memory rather than ordinary RAM, so a counter or a small state structure can persist across sleep cycles without needing flash writes, which are slower and wear the memory over many cycles. This matters for duty-cycle designs that need to remember, for example, how many readings have been taken since the last successful transmission, or whether the last Wi-Fi connection attempt failed and a retry strategy should kick in. Reaching for RTC memory for small persistent values, and reaching for flash only for things that must survive a full power loss, is a useful default.

The table below lays out the practical differences in the most common terms a hobbyist needs: what state survives, how the chip resumes, and the kind of application each mode fits.

Deciding which mode fits a given sensor node usually comes down to one question: how long is the gap between useful work, and how much does the application need to remember across that gap? A device polling a sensor every few seconds, where the gap is short and the work of reconfiguring peripherals each time would dominate, often favors light sleep or simply staying awake with the FreeRTOS scheduler idling efficiently. A device that reads a temperature sensor once every several minutes or hours, where the gap vastly outweighs the active time, almost always favors deep sleep, because the power saved during the long gap swamps the small cost of re-initializing everything on wake.

It helps to picture a concrete example. A soil moisture sensor reporting once an hour spends under a second actually measuring and transmitting, and nearly the entire hour idle. Running that device in light sleep for fifty-nine minutes would still draw meaningfully more current than deep sleep for the same stretch, simply because light sleep keeps more circuits powered on standby. Over a battery's lifetime, that difference compounds into weeks or months of usable life gained by choosing deep sleep instead. The one-second cost of rebooting into app_main, reconnecting Wi-Fi, and reading the sensor again is a small price against that saving.

There is a middle ground worth naming directly: a design can mix the two. A node might use light sleep between quick repeated samples within one active period, then drop into deep sleep for the long gap until the next period begins. This pattern shows up in sensor nodes that take a short burst of readings to average out noise, then go quiet for an extended stretch. Treat light sleep as the tool for short internal pauses within an active window, and deep sleep as the tool for the long gap between windows, rather than picking one mode for the whole device and forcing every situation to fit it.

Because each ESP32 target has its own peripheral set and power domains, the exact current draw and exact feature set of each sleep mode differs from one chip to the next, and even from one development board to another depending on what else sits on the board drawing current. A board with an onboard USB-serial chip or an always-on voltage regulator LED can draw more current during deep sleep than the ESP32 module itself does, no matter how carefully the firmware is written. Checking the schematic of the specific board in use, not just the datasheet of the chip, is part of the job before committing to a sleep strategy.

One more consequence of deep sleep's reset-like nature deserves attention: every wake cycle pays the cost of re-establishing a Wi-Fi station mode connection from scratch, including association and any DHCP lease renewal, unless the device stores connection parameters to speed that process up. That reconnection cost, built up in the Wi-Fi chapter as a one-time setup step, becomes a recurring cost paid on every single wake cycle in a deep-sleep design. It is often the single largest consumer of energy in the whole duty cycle, larger than the sensor read, larger than the MQTT publish itself, which is the exact problem the next subchapter works through in detail.

Before moving on, it is worth sketching the decision in explicit terms, since beginners often default to deep sleep purely because it saves the most power, without checking whether the application can tolerate losing all its in-memory state every cycle. A device that needs to maintain a running average across dozens of recent readings, for instance, either needs to persist that average into RTC memory before each sleep or needs to avoid deep sleep for that stretch of logic. Matching the sleep mode to both the power budget and the state-retention needs of the application, rather than to power savings alone, is the actual design skill here.

The decision tree below walks through that choice as a short sequence of questions, moving from how long the gap between active periods will be, to whether application state needs to survive that gap, to the sleep mode that best fits the answer.

Sleeping is only half of the picture. A sleeping chip is useless unless something reliably wakes it again, and ESP-IDF calls those triggers wake sources, with the exact list of supported sources depending on the target hardware^[1]. The most common wake source for a periodic sensor node is a timer, driven by the chip's internal RTC peripherals, which can be configured to fire after a set interval regardless of how long the chip has been asleep. A second common source is an external signal, typically a change on a designated GPIO pin, letting a button press, a motion sensor, or another device wake the node on demand rather than on a fixed schedule.

Several wake sources can be enabled at once, and the firmware that resumes after wake can query which source actually triggered the wake. This matters in practice: a node that wakes either on a timer or on a button press needs to behave differently depending on which one happened. A timer wake probably means take a scheduled reading, while a button wake might mean the user wants an immediate reading right now, reset the schedule. Checking the wake cause right after app_main begins, before doing anything else, lets the rest of the boot sequence branch appropriately instead of treating every wake identically.

Designing the duty cycle, the repeating pattern of wake, do work, sleep, is where all the earlier chapters' skills get reassembled under a tight time budget. A typical cycle for a Wi-Fi sensor node looks like this:

1. Wake from deep sleep, triggered by the RTC timer wake source.
2. Reinitialize only the peripherals actually needed for this cycle (the I2C bus for a sensor read, for instance).
3. Read the sensor value, using the ADC or the I2C bus driver as covered earlier.
4. Bring up Wi-Fi station mode and wait for association and an IP address.
5. Publish the reading, typically with ESP-MQTT or an HTTP client request.
6. Confirm the publish succeeded, or apply a short, bounded retry if it did not.
7. Configure the RTC timer wake source for the next interval and re-enter deep sleep.

Every step in that list costs time, and time spent awake is the entire power budget. The sensor read is usually fast, often tens of milliseconds. The Wi-Fi connection step is usually the slowest and most variable, frequently taking longer than every other step combined, because joining a network and acquiring an address involves back-and-forth with the access point that the firmware cannot simply speed up through better code. This is the detail that catches most beginners off guard: they optimize the sensor-reading code carefully, then leave the default Wi-Fi connection logic untouched, not realizing it dominates the energy bill for the entire cycle.

A few concrete techniques shrink that Wi-Fi connection window. Storing the access point's channel and BSSID from a previous successful connection, and supplying them on the next connection attempt, can let the radio skip some of the scanning it would otherwise do to find the network. Using a static IP configuration instead of waiting on a full DHCP exchange removes another variable delay. Keeping the MQTT payload small and the broker interaction brief, a single publish rather than a multi-message handshake, also trims the time the radio needs to stay powered. None of these require touching the sensor-reading code at all. They are entirely about shortening the networking phase of the duty cycle.

Choosing the sleep interval itself is a separate decision from shrinking each cycle's active time, and the two multiply together. A temperature sensor that only needs hourly readings should not wake every minute just because the hardware can; every unnecessary wake pays the full Wi-Fi connection cost again. On the other hand, an interval set too long risks missing meaningful changes, or triggering alarms from a monitoring system expecting more frequent heartbeats. A practical approach is to start with the loosest interval the application can tolerate, measure the resulting battery life, and only tighten the interval if the use case genuinely demands it, rather than defaulting to a short interval out of habit carried over from always-on Arduino loops.

Error handling inside the duty cycle needs the same bounded discipline as the happy path. If the Wi-Fi connection attempt fails, waiting indefinitely for it to succeed would turn an occasional network hiccup into a battery-draining stall. A sound pattern sets a maximum wait time for each networking step, abandons the attempt if that time is exceeded, logs the failure using the log level and log tag conventions from the diagnostics chapter, and goes back to sleep to retry on the next scheduled interval rather than burning the battery on a connection that is not going to succeed. The RTC memory holding a retry counter, mentioned earlier, is useful here: after several consecutive failures, the firmware might fall back to a longer sleep interval to conserve power until conditions improve.

Firmware updates deserve a place in this design from the start: OTA updates depend on the device being reachable and awake long enough to receive one. A node that sleeps almost all the time cannot simply be reflashed over the air whenever convenient. Many designs handle this by checking, during one window per day or per week, whether an update is available, accepting a slightly higher energy cost on that particular cycle in exchange for staying maintainable in the field. That tradeoff belongs in the duty cycle design from the start, not bolted on after the device has already shipped.

Taken together, wake sources and duty cycle design turn the abstract idea of sleep to save power into a concrete engineering decision with real tradeoffs: how often to wake, what triggers an unscheduled wake, how much state must survive between cycles, and how aggressively to bound each networking step. None of these decisions can be made correctly from the datasheet alone. They need to be checked against real measurements, which is exactly the subject of the final subchapter.

Every decision made so far, sleep mode, wake source, duty cycle shape, rests on an assumption about how much current the device actually draws at each stage. That assumption needs to be checked against a real measurement, because datasheet figures describe the chip in isolation, not the finished board with its regulator, LEDs, and whatever sensor is attached. Two practical techniques get you a real number: breaking the power rail to insert a multimeter in series, or reading the voltage drop across a small shunt resistor placed deliberately in the power path.

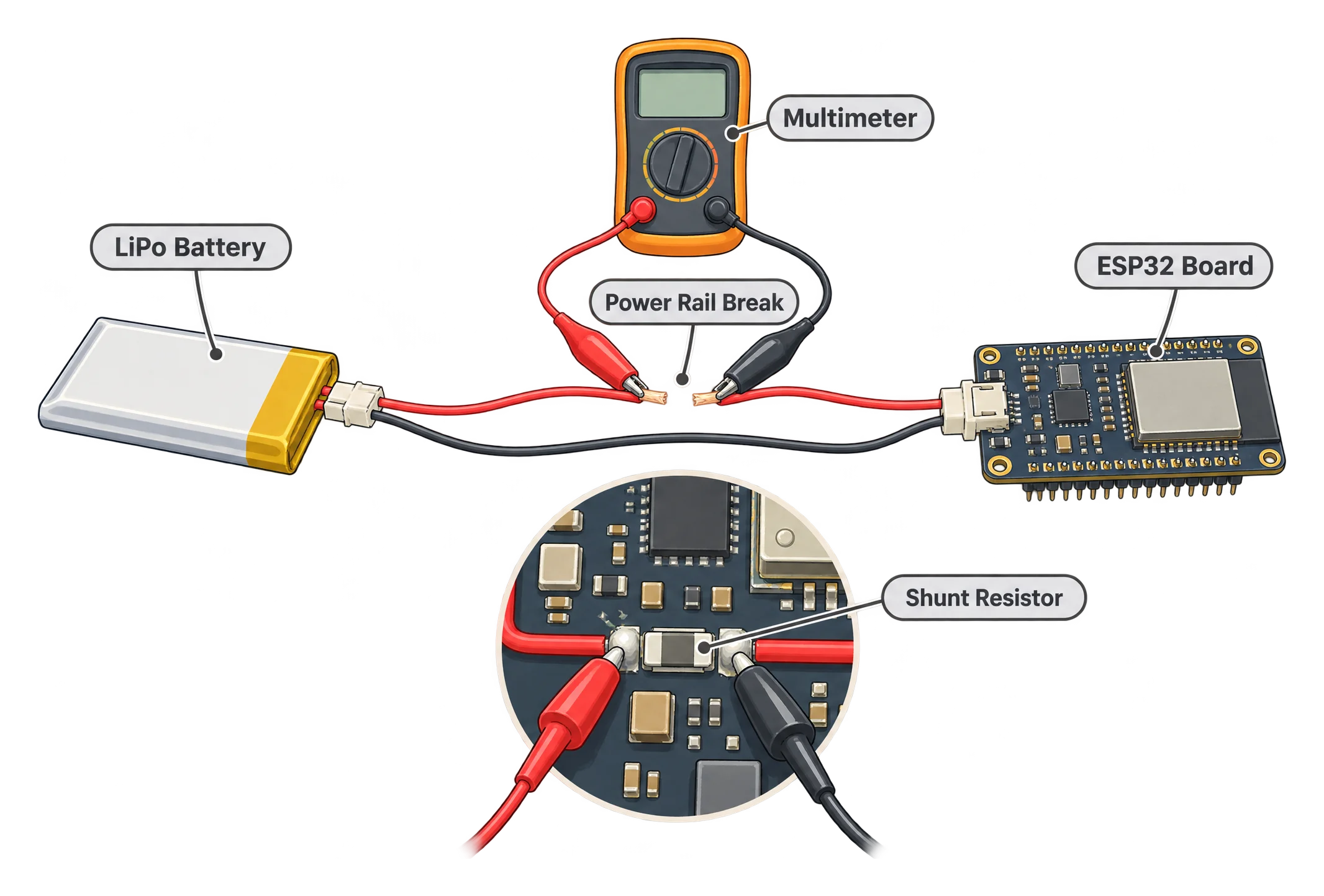

The illustration below shows a multimeter clipped into a broken power rail feeding an ESP32 board from a small battery, alongside an inset view of a shunt resistor measurement point on the circuit board itself.

The in-series multimeter method is the simpler of the two to set up: cut or unplug the power rail between the battery and the board, connect the multimeter's current-measuring terminals across that gap, and read the display. Most handheld multimeters handle milliamp-range currents well but struggle to resolve the microamp-range currents typical of deep sleep, and inserting a standard multimeter into the circuit can itself add enough resistance to disturb a sensitive reading. For deep sleep measurements specifically, a dedicated low-current meter, sometimes marketed for exactly this kind of embedded power profiling, gives a far more trustworthy number than a general-purpose multimeter.

The shunt resistor method works by placing a small, precisely known resistor in the power path and measuring the tiny voltage drop across it, then applying current = voltage / resistance to recover the current. This has the advantage of being non-invasive to probe repeatedly, once the shunt is in place, and can be read continuously with an oscilloscope or a data acquisition tool to capture how current changes moment to moment through a full duty cycle, rather than just an average or a single snapshot. Many development boards do not include a shunt resistor by default, so this approach often means either choosing a board designed for power profiling or adding the shunt yourself on a breadboard between the battery and the circuit.

Whichever method is used, the measurement that matters is not a single number but a profile across the whole duty cycle: current during deep sleep, current during the sensor read, the current spike during Wi-Fi association, and current during the data publish. A single average reading hides exactly the detail needed to find where the energy is actually going. Capturing the profile over one full cycle, from wake to the next sleep, shows which phase to attack first if battery life needs improving, confirming or correcting the assumptions behind the duty cycle described in the previous subchapter.

Once a real current profile is in hand, estimating battery life becomes a matter of arithmetic rather than guesswork. The key quantity is the average current over one full duty cycle, weighted by how long the device spends in each state. For a cycle that spends most of its time in deep sleep and only a brief window awake, the formula looks like this:

I_avg = (I_sleep × t_sleep + I_active × t_active) / (t_sleep + t_active)

Working through a concrete example makes this formula tangible. Suppose a node sleeps at 10 microamps for roughly 3598 seconds and draws an average of 80 milliamps for 2 seconds of active work each cycle, giving a 3600-second (one-hour) cycle overall. Converting units carefully (10 microamps is 0.01 milliamps), the weighted average works out to approximately (0.01 × 3598 + 80 × 2) / 3600, which is about 0.054 milliamps, or 54 microamps average current. Against that 220 mAh LiPo cell, dividing capacity by average current (220 / 0.054) suggests roughly 4,074 hours, or around five and a half months, a dramatic improvement over the couple-of-hours figure for continuous active operation mentioned at the start of this chapter.

That worked example also shows where effort pays off and where it does not. Shaving the sleep current by a small fraction barely moves the final answer, because the sleep term is already a small contributor next to the active term, once the active current and duration are multiplied out. Shaving the active window significantly, by trimming the Wi-Fi connection time as discussed earlier, can dramatically improve the estimated battery life. This is the practical payoff of measuring the real profile rather than assuming: it tells you precisely which lever to pull, instead of spreading optimization effort evenly across parts of the cycle that do not actually matter much.

Real batteries complicate this clean arithmetic in ways worth naming honestly. Battery capacity is not perfectly stable; it degrades with temperature, with age, and with how deeply the battery is discharged each cycle. A cell rated for a given capacity at room temperature delivers meaningfully less in cold conditions, which matters for an outdoor sensor node. Self-discharge, the slow internal leakage of charge that happens even with the device fully asleep, also eats into the usable capacity over long timescales, and becomes significant precisely in the kind of multi-month deployment this chapter is trying to achieve. Treating a calculated estimate as an upper bound, and validating it against real field behavior over the first few weeks of deployment, is a sound practice rather than trusting the arithmetic blindly.

The regulator and supporting circuitry must be budgeted separately from the ESP32 chip itself, because the chip's low sleep current means nothing if a voltage regulator on the board burns milliamps of its own quiescent current around the clock. Many general-purpose development boards include regulators, USB-serial chips, and status LEDs optimized for convenience during development, not for battery life, and these components can dominate the sleep current of the whole board even when the ESP32 itself is drawing only a few microamps. Boards specifically designed for low-power battery operation address this by using regulators chosen for low quiescent current and by removing or allowing the removal of always-on LEDs, and checking a board's specifications for this before committing to it for a production battery design avoids an unpleasant surprise during measurement.

None of this arithmetic replaces the exercise of actually building the device, flashing it, and watching it run on battery power for a representative stretch of days. A calculated estimate built from a short bench measurement is a planning tool, useful for comparing design choices before committing to hardware, but the only fully trustworthy number comes from a real deployment under the conditions the device will actually face. Building that habit now, measuring, estimating, then validating in the field, carries forward directly into the debugging and OTA chapters ahead, where a device that sleeps most of its life needs log output, watchdog behavior, and update windows all designed around the same hard constraint: it is rarely awake, and every second it stays awake has already been paid for in milliamp-hours.

ESP-IDF's logging system is built around a family of macros, ESP_LOGE, ESP_LOGW, ESP_LOGI, ESP_LOGD, and ESP_LOGV, one for each severity level from error down to verbose. Each macro takes a log tag, a short string identifying which part of the firmware produced the message, followed by a format string and arguments much like printf. Rather than scattering unlabeled print statements through your code, you group related log calls under a consistent tag, usually defined once near the top of a source file as a static const char *TAG constant. This single change, labeling every line with its origin, turns a scrolling wall of text into something you can actually search and filter.

The severity levels exist because not every message deserves the same attention, and ESP-IDF lets you control, globally and per tag, how much gets printed at all. ESP_LOGE is for conditions that mean something has genuinely failed, a sensor that refuses to answer, a connection that cannot be established after retries. ESP_LOGW flags something unexpected but survivable, like a reading that fell outside a sane range and was discarded. ESP_LOGI is for the normal narrative of the firmware doing its job: woke up, read sensor, published data, going back to sleep. ESP_LOGD and ESP_LOGV are for the detail you only want while actively chasing a bug, register values, intermediate calculations, timing between steps.

ESP-IDF's documentation describes this configurable severity scheme as one of its core diagnostic facilities, distinct from the JTAG and monitor-based workflows that come into play when log output alone is not enough.^[1] In practice this means you can leave verbose logging statements inside the code permanently, something an Arduino sketch rarely does gracefully, because the global compile-time and runtime level settings strip or silence anything below the threshold you choose. During development you might run everything at the debug level to see every detail. Before shipping a battery-powered node, you drop the default to info or warning, which both saves flash space for message strings and avoids wasting precious wake time writing to a serial port nobody is watching.

Setting log levels happens at two different points, and the difference matters for a device running on a battery far from a desk. The compile-time level, set through Kconfig in sdkconfig, determines the ceiling, any macro call below that level is compiled out entirely and costs nothing at runtime. The runtime level, set by calling a logging function early in app_main, lets you raise or lower verbosity for a specific tag without recompiling, which is invaluable when you want to turn on detailed output for just the Wi-Fi connection code while leaving everything else quiet. Combining the two gives you a lean production build with the option to turn up specific tags temporarily if a field unit starts behaving oddly and you can get a serial cable to it.

A practical pattern for a sensor node is to tag each subsystem separately rather than lumping everything under one generic label. Giving the sensor-reading code its own tag, the networking code another, and the power-management code a third means a single filtered view of the log can answer a specific question instantly, for example showing only what the Wi-Fi connection logic is doing while a sensor read problem is handled elsewhere. The table below shows a reasonable assignment of severity to the kinds of events a sensor node typically produces during its wake cycle.

Beyond the macros themselves, the idf.py monitor tool is where most of this output actually gets read during development. It attaches to the device's serial port, decodes the log output as it streams in, and in many configurations can automatically translate a crash backtrace's raw addresses into readable function names and line numbers, saving you from manually looking them up in a map file. Running idf.py monitor right after flashing is the most basic habit worth building early: it is the equivalent of the Arduino serial monitor, but tied into the richer log formatting ESP-IDF produces, including colored severity levels and the tag-based structure described above.

One mistake worth avoiding is treating logging as free. Every call to an ESP_LOG macro that is not compiled out still takes CPU time to format the string and write it to the UART, and on a battery-powered device that is woken briefly from deep sleep, repeated verbose logging during the active window can measurably extend how long the radio and CPU stay powered, working against the duty cycle design covered when estimating battery life. The fix is not to avoid logging, but to be deliberate: keep informational messages for key milestones in the wake cycle, reserve debug and verbose levels for development, and make sure your production build's compile-time level actually strips them out rather than just suppressing them at runtime.

Another common pitfall is logging too little context to be useful later. A log line that says only sensor error tells you something went wrong but nothing about why, whereas a line that includes the specific error code returned by the I2C driver, the retry count, and the tag identifying which sensor, turns the same failure into something you can diagnose without being in front of the device. Treat every error-level log line as a message to your future self, debugging a device you can no longer physically see, and include enough detail that the message alone tells the story.

It also helps to standardize a small set of tags across the whole project rather than inventing a new one per file out of habit. A reasonable convention is one tag per logical subsystem, matching the structure of your FreeRTOS tasks: a tag for the sensor task, one for the networking task, one for power management, and perhaps one for app_main itself covering startup. This mirrors the task-based structure recommended elsewhere in this book and makes the log output read like a narrative of which part of the firmware is speaking at each moment, rather than an undifferentiated stream.

Finally, remember that logging is only useful if someone, or something, is listening at the moment the message appears. For a device plugged into a desk during development that is trivially true, but for a deployed battery-powered node waking once an hour, the log line vanishes into the UART unless a core dump or a persistent store captures it. That gap is exactly why the next two sections exist: a debugger and a core dump exist precisely for the moments logging alone cannot reach, either because the firmware crashed before it could log anything useful, or because nobody was watching when it happened.

Logging tells you what the firmware thought was happening, but sometimes the bug is precisely that the firmware's understanding of its own state was already wrong, a corrupted variable, a stack that overflowed into neighboring memory, a pointer pointing somewhere it should not. For these cases, ESP-IDF's documentation distinguishes debugging through idf.py monitor from a separate, more invasive workflow built around OpenOCD and JTAG, which lets you connect a real hardware debugger to the running chip.^[2] JTAG is a hardware interface, a small number of dedicated pins, that lets an external debug probe talk directly to the processor's debug logic, independent of whatever the firmware itself is doing.

OpenOCD is the software that sits between the JTAG hardware probe and a standard debugger interface, translating debugger commands into the low-level signaling the chip's debug port expects. With OpenOCD running and connected over JTAG, you can attach a familiar debugger front end to the live chip, set breakpoints at specific lines of code, step through execution one instruction or line at a time, and inspect the contents of variables, registers, and memory exactly as they exist at that instant. This is fundamentally different from logging, which only shows you what you explicitly asked to be printed. A debugger shows you everything, at the cost of needing extra hardware (a JTAG-capable board or adapter) and a more involved setup than plugging in a USB cable for serial monitoring.

Where logging earns its keep for ordinary development, a JTAG debugger earns its keep for the bugs that resist explanation through log output alone. A classic example is a stack overflow in a FreeRTOS task with too small a stack size, covered earlier when discussing task creation. The symptom is often a crash in completely unrelated code, because the overflowing stack has quietly corrupted memory that belongs to something else entirely. No amount of adding log lines near the apparent crash site will explain it, because the actual cause happened somewhere else, earlier. Breaking at the crash point with a debugger and inspecting the stack pointer and surrounding memory can reveal the overflow pattern directly, something logging was never designed to show.

Setting up a JTAG debugging session typically means connecting a debug probe, which may be a separate adapter or built into some development boards, to the chip's JTAG pins, then starting OpenOCD configured for your specific target, and finally connecting a debugger front end to the local port OpenOCD exposes. The specific pin assignments and whether your board has an integrated probe both vary by hardware, so this is one of the clearest cases in this book where you must check your exact board's documentation rather than assuming a wiring diagram from a different board will apply.

Breakpoints and single-stepping are most valuable while you still have the device connected and the problem is reproducible on demand. But many of the worst firmware bugs are intermittent, appearing once after hours of normal operation, exactly the kind of failure you will not catch by sitting with a debugger attached waiting. This is where a core dump becomes essential. A core dump is a snapshot of the system's memory and register state captured automatically at the moment of a crash, saved somewhere persistent, typically flash, so it survives the reboot that follows and can be examined afterward, even though you were not watching when it happened.

Configuring core dumps involves reserving space for them, often in a dedicated partition or a region of flash set aside for the purpose, and enabling the relevant option through the project's configuration menus. Once enabled, if the firmware crashes, for example from an unhandled exception or an assertion failure, ESP-IDF's panic handler writes out the current state before resetting the device, rather than simply resetting and losing all evidence of what happened. After the device reboots, the saved core dump can be retrieved and analyzed with tooling that decodes it into a readable backtrace and variable dump, essentially giving you the same view a live debugger session would have shown, but reconstructed after the fact.

This matters enormously for the battery-powered sensor node this book works toward, a device that by design spends most of its life asleep and unattended, possibly deployed somewhere inconvenient to reach with a laptop and a JTAG cable. If it crashes once a week due to a rare edge case, a core dump captured at that moment and retrieved the next time the device is reachable, whether over a maintenance connection or physically, turns an unreproducible mystery into a concrete backtrace pointing at a specific function and line. Without it, the only evidence is a watchdog reset reason and a guess.

A worked example makes the value concrete. Suppose a sensor node occasionally resets after several days of otherwise normal operation, with no error-level log line preceding it, because the crash happened too abruptly for any log call to execute. Without a core dump, the only clue is the reset reason reported at the next boot, which might say only that an unhandled exception occurred, not where. With a core dump enabled and later decoded, the backtrace might point directly to a null pointer dereference inside the MQTT publish path, something you could then fix by checking a connection handle before using it, a fix you would otherwise have had to guess at or reproduce through tedious trial and error.

It helps to think of logging, JTAG debugging, and core dumps as three tools suited to three different moments in a bug's life. Logging is for the bug you can reproduce on demand and want to narrate as it happens. JTAG debugging is for the bug you can reproduce on demand but need to inspect deeply, pausing time and looking inside memory rather than just reading a printed trail. A core dump is for the bug that happens once, rarely, when nobody is watching, and needs its evidence preserved automatically for later. None of the three should be treated as a replacement for the others.

Before relying on either JTAG debugging or core dumps for a specific project, confirm that your exact chip and board combination supports the debug probe connection you intend to use, since not every development board exposes JTAG pins the same way, and not every ESP32-family target has identical debug capabilities. Checking this early, before you are deep into chasing an intermittent bug, saves the frustration of discovering mid-investigation that your hardware setup cannot do what you assumed.

A watchdog timer is a hardware or software countdown that resets the device if nothing resets, or feeds, it within a configured window. The idea is simple and old, older than ESP-IDF or even FreeRTOS: if the firmware were working correctly, some piece of code would periodically touch the watchdog to prove it is alive, and if that touch never comes, something has gone wrong badly enough that a full reset is the safest response. For a device sitting on a desk during development, a hang is an annoyance you notice and fix by unplugging and reconnecting. For a battery-powered sensor node deployed somewhere you cannot easily reach, a hang without a watchdog means the device is effectively dead until someone physically visits it.

ESP-IDF provides more than one watchdog mechanism, and it is worth understanding the distinction conceptually even without memorizing every configuration option. One watches the overall system and can be configured to expect periodic activity from the idle tasks running on each CPU core, catching the case where a task has monopolized a core so completely that nothing else, including the scheduler's own bookkeeping, gets a chance to run. Another form lets you create a watchdog scoped to a specific task or operation, useful when a particular piece of code, say a sensor read that calls into a driver you did not write yourself, has the potential to hang indefinitely waiting on hardware that never responds.

The failure mode a watchdog is designed to catch is distinct from the crash a core dump captures. A core dump captures an exception, a clear error the processor itself detected, like dereferencing an invalid pointer. A watchdog catches the opposite problem: code that runs forever without ever triggering an exception, simply spinning in a loop waiting for a condition that will never become true, perhaps because a sensor's interrupt was misconfigured, or a queue receive call is blocking forever on a message that will never arrive because the sending task already crashed. Without a watchdog, this kind of silent hang leaves no trace at all, the device simply stops responding and nothing in the log ever explains why.

A practical design pattern is to have each long-running FreeRTOS task feed a watchdog as part of its normal loop, right after completing a unit of work, for example right after a sensor read and before going back to wait on a queue. If that task later hangs, perhaps stuck inside a driver call that never returns, it stops feeding the watchdog, and, with the task watchdog set to panic on timeout (CONFIG_ESP_TASK_WDT_PANIC, which is off by default), the system resets rather than leaving the sensor node permanently unresponsive until physically power-cycled. This turns an unrecoverable hang into a recoverable reset, at the cost of losing whatever work was in progress during that cycle, which for most sensor nodes is an acceptable trade since the next wake cycle will simply try again.

Feeding the watchdog correctly, however, requires discipline, because a careless pattern can defeat the entire purpose. If you feed the watchdog from a task that sits in a tight loop regardless of whether the work inside that loop is actually succeeding, for instance a loop that calls feed, then attempts a sensor read, then feeds again immediately even if the sensor read silently failed or returned garbage, the watchdog will happily keep resetting its timer forever while the firmware is, in a meaningful sense, already broken. The watchdog only protects against a true hang, not against a task that is alive but doing the wrong thing, so pair it with error-level logging and explicit checks on return values rather than treating it as a substitute for actual error handling.

Recovery after a watchdog-triggered reset deserves its own thought, because resetting is only half of graceful. On boot, ESP-IDF exposes the reason for the previous reset, letting app_main check whether the device came back after a normal power cycle, a deliberate software restart, or a watchdog timeout. Logging this reason at an error level right at startup, before anything else runs, means every future boot leaves a trail explaining what happened last time, which is often the only diagnostic evidence available for a device that crashed while unattended and nobody was there with a debugger or a monitor connected.

It is worth designing a few rules in advance for what a task should do differently after a watchdog-triggered reset, rather than simply resuming as if nothing happened. If a sensor node has reset three times in a row within a short span, for example, that pattern itself is useful information suggesting a persistent problem rather than a one-off glitch, and the firmware might choose to back off, extend its sleep duration, or skip attempting network communication until conditions look more stable. Storing a small reset counter somewhere persistent, and clearing it only after a sustained period of successful operation, is a lightweight way to distinguish a rare fluke from a repeating failure worth treating more cautiously.

Consider a concrete scenario: a sensor node deployed outdoors begins resetting every few hours instead of running its full duty cycle smoothly. Checking the reset reason at boot reveals a watchdog timeout rather than a power loss, immediately narrowing the search to a hang rather than a power supply issue. Cross-referencing the timing against the task structure, if the watchdog consistently expires during the networking task's wake window, points suspicion toward the Wi-Fi connection or MQTT publish step rather than the sensor read, saving hours of investigating the wrong subsystem. This is exactly the kind of diagnosis that becomes possible once reset reasons are logged and watchdogs are scoped sensibly.

Treat testing the watchdog as non-negotiable rather than optional, since a watchdog that has never actually been proven to fire is a safety net you have not tested, hanging there untested until the one moment you actually need it, in the field, with no one watching. Deliberately hanging a task during development, confirming the reset happens, and confirming the reset reason gets logged correctly closes the loop on all three tools this chapter has covered: a log line narrating what happened, a reset reason explaining why, and, for the cases that still resist explanation, a core dump or a JTAG session waiting as the deeper layer of evidence underneath.

An OTA-capable device needs more than one place to store an application. Instead of a single app partition, the flash layout holds two or more OTA application slots, often labeled ota_0 and ota_1, plus a small bookkeeping partition called the OTA data partition. Safe application OTA uses these alternate application slots and the OTA data partition so the bootloader can select the updated image only after it has been verified^[1]. The running firmware writes a new image into whichever slot is not currently active, and only when that write finishes cleanly does the device tell the bootloader to try booting from it next.

This two-slot design solves the obvious failure mode that a single-partition update cannot survive: a power loss or corrupted transfer mid-write. If a device has only one application partition and the update is interrupted, the device has nothing left to boot. With two slots, the previously working image sits untouched in the other slot while the new one is being written. A failed transfer simply means the device reboots into the same firmware it was already running, none the worse for the interruption. This is the single biggest reason OTA-capable hardware needs its partition table planned before the first production build, not retrofitted onto a device already in the field.

Some projects also keep a dedicated factory partition, a known-good baseline image that the bootloader can always fall back to if both OTA slots become unusable. This acts as a last resort separate from the normal rollback mechanism, useful for recovering a device that has somehow ended up with two bad OTA images (for example, after a botched manual flash in the field). Not every project needs one, but for a device that will sit somewhere physically inaccessible for years, a factory partition is cheap insurance against the rare case where normal rollback logic is not enough to save the device.

The update logic itself runs through the esp_ota_ops component, which exposes the functions used to find the next free slot, open it for writing, write firmware data into it in chunks, and finally mark it as the boot target. A typical flow looks like the steps below.

• Call a function to get the handle of the OTA partition not currently running.
• Begin an OTA write session against that partition.
• Write the incoming firmware data in chunks as it arrives over the network.
• End the write session, which finalizes and validates the image.
• Set the newly written partition as the one to boot next.
• Restart the device so the bootloader loads the new image.

Writing firmware in chunks matters because a full image is typically too large to hold in RAM at once, and because network transfers naturally arrive in pieces anyway. Each chunk gets written directly into flash as it comes in over HTTP (the same HTTP client mechanics covered in the networking chapter apply here, just pointed at a firmware binary instead of a telemetry endpoint). The write session keeps track of where it left off, so a sensor node pulling down a multi-hundred-kilobyte image does not need anything more exotic than a modest buffer and a loop.

Writing a new image is only half the safety story. The other half is what happens the first time the device boots into it. A naive implementation would simply mark the new slot as permanent the moment the write finishes, but that is risky: the image might write perfectly and still fail to boot correctly, perhaps because of a bug that only shows up once the device tries to reconnect to Wi-Fi or initialize a sensor. Rollback support addresses exactly this. The bootloader can boot the new image in a pending, unconfirmed state, and the application itself is expected to explicitly confirm that it is healthy after startup, usually after it has successfully reached some meaningful checkpoint such as a clean sensor reading and network connection.

If the new firmware never confirms itself (because it crashes, hangs, or trips the watchdog timer discussed in the previous chapter before reaching that checkpoint) the bootloader treats it as a failed update on the next restart and automatically reverts to the previous working image. This is the mechanism that actually protects a ceiling-mounted sensor node: a bad update does not get a second chance to permanently replace working firmware. It gets exactly one boot attempt, and if that attempt does not prove itself healthy, the device quietly falls back to what it knew worked before.

The decision tree below sketches this at a glance. It starts with a device that has just applied a new OTA image and ends at either a confirmed update or an automatic rollback.

Designing the health checkpoint deliberately is worth real thought. A checkpoint set too early, right after app_main starts, barely tests anything and would confirm firmware that cannot even join Wi-Fi. A checkpoint set too late, requiring days of stable operation, means a device could run broken firmware for a long time before rollback kicks in. A reasonable middle ground for a sensor node is to confirm the image only after it has connected to Wi-Fi, published at least one successful reading, and done so before its first deep sleep, because waking from deep sleep restarts through the bootloader, which treats a still-unconfirmed image as a failed update and rolls it back, giving confidence that the full operating cycle actually works.

It helps to treat the OTA data partition itself as something to inspect, not just trust blindly. Logging the currently running partition's label and the pending validation state at startup (using the log levels and tags discussed earlier) turns a silent rollback into a visible, debuggable event instead of a mystery where a device seems to spontaneously revert to old behavior. A field technician checking logs after a suspicious rollback should be able to see clearly that an update was attempted, failed its checkpoint, and reverted, rather than guessing.

One mistake to avoid is treating a successful OTA write as the same thing as a successful update. Writing bytes to flash correctly says nothing about whether the new application logic actually runs correctly on real hardware, with real sensors attached and a real network environment. Always validate behavior, not just the write operation, before calling an update complete.

Another common trap is forgetting that partition table changes themselves are not something OTA can fix. If a future firmware revision needs a different partition layout (a larger application slot, for instance) that change usually cannot be delivered as a normal OTA update, because it touches the structure the bootloader itself depends on. This is one of the strongest arguments for over-provisioning partition sizes generously at the very start of a project, well before the first unit ships.

Finally, remember that rollback protects against firmware that fails to run, not firmware that runs but behaves badly in subtle ways, like reporting wrong sensor values or draining the battery faster. Those failure modes need deliberate monitoring (checking telemetry trends after a fleet-wide rollout) rather than relying on the bootloader to catch them. Rollback is a safety net for crashes and boot failures, not a quality assurance process for correctness.

Getting a new firmware image onto a device safely is a distinct problem from storing it safely once it arrives. The previous section covered what happens after bytes land in an OTA partition. This section covers how those bytes get there in the first place, and why the delivery path deserves as much care as the partition logic itself. A device that will happily accept and boot any firmware handed to it over the network is a liability, not a convenience, the moment it is deployed somewhere outside your direct control.

The most common delivery pattern for a hobbyist or small-fleet project is to host the firmware binary on an HTTPS server and have the device fetch it using the same HTTP client component already used for sending telemetry. The device typically checks a small manifest file or a version endpoint first, comparing the version offered against its own currently running version. Only if the server's version is newer does it proceed to download the full binary and feed it chunk by chunk into the esp_ota_ops write session described earlier.

Fetching over plain HTTP, without encryption, is a mistake worth calling out directly. An unencrypted firmware download can be intercepted or altered in transit, meaning a device could be tricked into writing malicious or corrupted firmware into an OTA slot that it will later boot and trust. Using HTTPS for the firmware fetch (the same TLS support that the HTTP client supports for secure telemetry uploads) closes that gap, ensuring the bytes written into flash are exactly the bytes the server sent, with no tampering possible in between.

Encryption in transit answers the question of whether the data was altered on the way. It does not answer the separate question of whether the server offering the firmware was ever the legitimate one to begin with. A device pointed at the wrong URL, or one whose server gets compromised, will happily fetch and run whatever that server hands it, encrypted or not. Where it matters, firmware images can be signed, and the device can verify that signature using a public key baked into the firmware before trusting an image, independent of the transport layer. For a personal project running on a home network, this may be more than needed, but for anything deployed where you cannot personally vouch for the network path, signature verification closes a real gap that HTTPS alone leaves open.

Version comparison logic deserves care too, since a naive implementation can create its own failure modes. Comparing version strings alphabetically, for example, would wrongly treat a version like "10" as older than "9" under simple string comparison. Use a numeric or structured version scheme and compare it numerically, and always include a safeguard against downloading the same version repeatedly in a loop if the comparison logic has a bug, since a device stuck re-downloading firmware on every wake cycle will drain its battery fast and hammer the server needlessly.

The checklist below summarizes the practical safeguards worth having in place before a device is trusted to pull and apply updates on its own in the field.

That last point about scheduling matters more than it might seem. A battery-powered node following the duty cycle pattern from the low-power chapter wakes briefly, publishes data, and goes back to sleep. Checking for a firmware update on every single wake cycle adds network overhead and battery drain to a routine that was carefully budgeted. A more sensible pattern is to check for updates on a much slower schedule, say once a day or once a week, keeping the frequent wake-measure-publish-sleep cycle lean and reserving the heavier OTA check for a rare, deliberate event.

Decide upfront how a device signals that an update is in progress: the device will be unavailable for its normal sensing duties during the download and reboot. A brief gap in telemetry is normal and expected during an update window, but a backend system monitoring the fleet should be able to tell the difference between a device that is mid-update and one that has actually gone offline for an unrelated reason, so that an operator is not chasing a false alarm every time a batch of devices updates itself overnight.

For small personal fleets, delivery can be kept deliberately simple: a single file on a server, checked manually or on a timer, applied with the rollback safeguards already described. For anything larger, a more structured update server that can stage rollouts to a subset of devices first, watch for problems, and halt a bad rollout before it reaches the whole fleet is worth the extra setup. The partition and rollback mechanics described in the first section work the same either way. What changes with scale is how much automation and staged caution wraps around the delivery itself.

A staged rollout is simpler than it sounds: point only a handful of devices at the new firmware version first, watch their telemetry and rollback logs for a reasonable window, and only then update the version the rest of the fleet checks against. This single habit catches the overwhelming majority of bad updates before they reach every device, because a subtle bug that only shows up under real field conditions (a sensor model slightly different from the one on the bench, a weaker Wi-Fi signal at one location) tends to surface quickly once even a few real devices are running the new image.

None of this delivery infrastructure needs to be elaborate for a hobbyist project to benefit from it. Even a simple personal setup gains enormously from the habit of testing an update on one physically accessible device before pushing it to units mounted somewhere inconvenient. Treat the first unit like a canary: if it updates cleanly, confirms its health checkpoint, and runs correctly for a day, the rest of the fleet can follow with real confidence rather than hope.

Every chapter in this book has added one layer to a single running project, and this is where those layers come together into one physical, working device. The sensor node at the center of this book reads environmental data, publishes it over Wi-Fi, sleeps between readings to stretch battery life, and now can receive firmware updates safely in the field. None of the individual pieces are new here. What matters in this final assembly is how they fit together into one coherent app_main flow and one coherent set of FreeRTOS tasks.

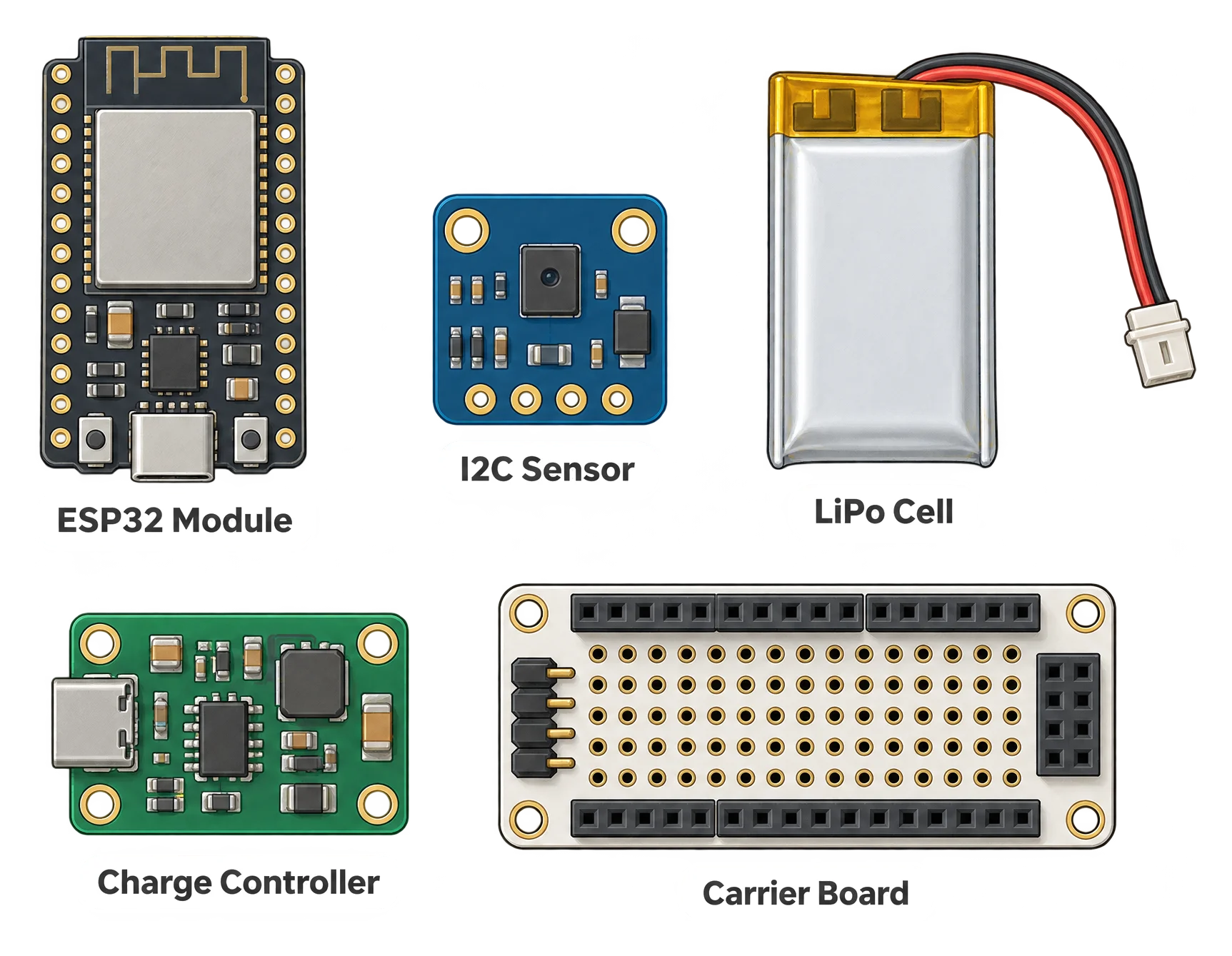

On the hardware side, the node is built from a small, recognizable set of physical parts. The illustration below shows what the finished bill of materials looks like when laid out on a bench before assembly.

The ESP32 module is the brain, running the ESP-IDF application built across this book. The I2C sensor breakout provides the environmental reading, wired over the I2C bus as covered earlier. The LiPo cell and its charge controller provide power independent of a wired connection, letting the finished device sit wherever it is needed rather than wherever an outlet happens to be. The carrier board, whether a custom PCB or a simple breadboard for prototyping, ties the pins together: sensor to I2C bus, battery to charge controller, charge controller output to the ESP32's power input.

On the software side, the application structure at startup follows a predictable sequence, built from pieces each covered in earlier chapters and now combined.

Notice where the OTA health checkpoint sits in this flow: after the sensing task has produced a reading and the networking task has successfully published it. This is a meaningful proof that the new firmware's core responsibilities actually work, not just that it booted. Confirming the image any earlier would risk marking a broken update as healthy before it had been truly exercised. Confirming it any later, say after several full duty cycles, would mean a device sits for an extended period on an unconfirmed image before gaining the protection of a validated boot.

A detail easy to overlook is that checking for updates needs its own place in the duty cycle, not a second, separate wake pattern bolted awkwardly onto the main one. The steps above check for updates as a conditional step within the same wake cycle, not a new deep sleep timer running in parallel. Running two independent wake schedules on one device multiplies the opportunities for bugs and wastes battery on redundant wake events. Folding the update check into the existing cycle, gated by a counter or a time comparison, keeps the whole system's energy budget predictable.

A short exercise worth running on real hardware, once the node is assembled and running its normal duty cycle: deliberately ship a firmware update containing a bug that prevents the health checkpoint from being reached, for instance a Wi-Fi connection attempt pointed at the wrong network name. Flash it as an OTA update rather than over a wired connection, and watch the device attempt to boot it, fail to reach the checkpoint, trip the watchdog, and roll back to the previous working firmware on its own. Seeing this recovery happen once, on purpose, on a device you can still physically reach, builds real confidence in the mechanism before trusting it on a unit you cannot.

A completed node worth shipping to a hard-to-reach location should pass through this sequence at least once before deployment: a clean build, a successful OTA update applied over the air rather than wired, a deliberate rollback test like the one above, and several full duty cycles observed through logs without errors. Skipping this dry run to save time is exactly the shortcut that turns a minor firmware mistake into a ladder trip, or worse, a device that can no longer be reached at all.

What makes this final assembly satisfying is not any single clever trick, but the fact that each earlier chapter's concept shows up here doing exactly the job it was designed for. The task structure keeps sensing and networking from blocking each other. The queue moves data between them without shared-state bugs. The duty cycle keeps battery drain manageable. The OTA partition scheme means today's firmware is not the last firmware this device will ever run. A sensor node built this way is not just a one-time project. It is a platform that can keep improving long after it has been mounted somewhere you would rather not climb back up to.

The most immediate next step is also the simplest: take an existing Arduino project, one you already know well, and rebuild it in ESP-IDF from scratch rather than through a compatibility layer. Pick something small, perhaps a single sensor that logs to serial, before attempting anything networked. The goal is not to produce better firmware than the original sketch. It is to feel, firsthand, the decisions that ESP-IDF forces you to make explicitly: how many tasks to create, what priority each one gets, how data moves between them, and what the partition table should look like before the first byte is flashed. Those decisions were always being made in the Arduino version too, just invisibly, by the framework underneath.

A second useful exercise is to take the battery-powered sensor node described in the final build chapter and deliberately change one constraint at a time, then observe what breaks or what improves. Swap the MQTT broker for a different one and see how reconnect logic needs to adapt. Change the wake interval and recompute the energy budget. Add a second sensor on the I2C bus and reconsider whether the existing task structure can absorb it cleanly, or whether a new task and queue are warranted. This kind of deliberate tinkering, done with intent rather than by accident, builds the pattern-matching instinct that experienced firmware engineers rely on: recognizing "this smells like a priority inversion" or "this looks like a stack overflow" before stepping into a debugger.

The checklist below pulls together the habits most worth carrying into any new ESP-IDF project, whether it is a sensor node, a controller, or something not yet imagined.

Debugging habits deserve particular attention, because they are the skill most likely to erode if not practiced. It is tempting, once a project works, to stop reaching for log levels, core dumps, or a debugger and simply trust that things will keep working. They will, until a board ships to a customer, a firmware update goes out over the air, or a sensor starts returning values just slightly outside the range ever tested. The habit of treating logging and error handling as part of the design, not an emergency measure bolted on after a failure, pays for itself the first time a device in the field reports a problem that can be diagnosed from log output alone rather than requiring a trip to retrieve the hardware.

The same applies to OTA update design. It is easy to treat over-the-air delivery as a feature to add once the "real" firmware is finished, but the partition layout and rollback behavior it depends on have to be decided before a device goes anywhere inaccessible. A project that skips this step and later needs an update mechanism often discovers that the flash layout already chosen leaves no room for a second application partition, forcing a full reflash that defeats the purpose of OTA entirely. Planning for updates from the first partition table written, even if the first several firmware versions never actually use OTA, avoids that trap.

Growth from here will likely come in one of two directions, and it helps to notice which one a given project calls for. The first direction is deeper: more sophisticated use of FreeRTOS primitives, finer control over core affinity and task priority, more careful power profiling, perhaps even custom component development shared across multiple projects. The second direction is broader: more peripherals, more communication protocols, larger and more complex applications built from many small, well-defined components rather than a handful of large files. Most projects eventually need some of both, but trying to tackle both at once on a single new project is a common way to get overwhelmed. Pick one axis to stretch at a time.

For the deeper direction, Espressif's own documentation remains the primary resource, and the Further Reading section that follows this chapter points toward specific starting places for FreeRTOS internals, power profiling tools, and advanced build system features such as the CMake build system v2 currently offered as a preview. Because ESP-IDF continues to change release over release, including structural shifts like the move of ESP-MQTT into its own component outside the main ESP-IDF repository, it is worth developing the habit of checking release notes for the specific version in use before assuming an API, a default setting, or a component's location still matches what was true during earlier learning.

For the broader direction, the component model introduced early in this book becomes increasingly valuable as projects grow. A sensor driver written cleanly as its own component, with a clear public interface and its own Kconfig options, can move from project to project with little modification. Over several projects, a personal library of components accumulates: a tested MQTT publishing wrapper, a deep sleep wake-and-measure routine, a watchdog-aware main loop. This is the practical payoff of treating ESP-IDF's structure as something to learn deeply rather than route around. The investment made in understanding tasks, queues, and components compounds across every future project built on the same framework.

It is also worth acknowledging where real limits remain. Every ESP32-family chip and development board carries its own peripheral set, pin constraints, and power behavior, and no amount of conceptual understanding substitutes for checking a specific board's documentation before assigning a pin or trusting a sleep current figure. A technique that works cleanly on one board's ADC may need calibration adjustments on another. A wake source available on one chip variant may not exist on a different one. The structural knowledge built across this book tells you what questions to ask and what each answer implies for your firmware; it does not replace the datasheet or the board-specific reference for the hardware actually in hand.

A good way to stay sharp is to revisit a past project periodically, not to add features, but to review it with newer eyes. A task structure that seemed reasonable six months ago may now look like it is doing too much in one task, or missing an obvious opportunity to use an event group where a bare flag variable is currently doing the job awkwardly. This kind of retrospective review, applied consistently, tends to improve new projects faster than any single tutorial, because it trains the instinct to recognize fragile patterns before they are written rather than after they cause a failure in the field.

Consider, too, the value of building something slightly uncomfortable next. A project that only repeats patterns already mastered confirms existing skill but does not extend it. Adding a second networking protocol alongside MQTT, experimenting with a sensor that requires more careful timing over SPI, or attempting a duty cycle tighter than anything tried before, each of these pushes into territory where the earlier chapters' frameworks have to be adapted rather than simply reapplied. That adaptation, more than repetition, is where real fluency with ESP-IDF develops.

The firmware that looks simplest from the outside, waking briefly, sending one small message, going back to sleep, is often the firmware that required the most disciplined thinking to get right.

That discipline is the real transferable skill here, more than any specific function name or configuration option. Blocking calls inside interrupt handlers will always cause hard-to-trace bugs, on any chip, in any framework, not just ESP-IDF. Shared state accessed from multiple tasks without a mutex will always eventually produce a bug that appears and disappears unpredictably. Devices shipped without a plan for remote updates will always become harder to maintain the moment they are out of physical reach. These are not quirks of one framework version. They are properties of concurrent, resource-constrained systems in general, and recognizing them is a skill that will outlast any particular tool used to apply it.

If a next project stalls, the troubleshooting instinct worth building is to ask which layer the problem actually lives in before reaching for a fix. A reading that looks wrong might be a sensor wiring issue, a calibration issue, a task timing issue, or a queue overflow silently dropping data, and each of those calls for a different kind of investigation. The debugging chapter's emphasis on log levels, log tags, and core dumps exists precisely so that question can be answered with evidence rather than guesswork. Reaching first for a log tag and a clear log message, rather than guessing at a fix and reflashing repeatedly, remains one of the fastest ways to actually solve a stubborn problem.

None of this requires waiting for a perfect next project idea. The small exercises suggested earlier, rebuilding an old sketch, varying one constraint on the sensor node, reviewing an old project with fresh eyes, are all available immediately, with hardware already on hand in most cases. Progress in firmware comes less from waiting for the right moment and more from running these small experiments regularly enough that the underlying structure, tasks, queues, interrupts deferred to tasks, duty cycles designed around a wake source, becomes second nature rather than something to look up each time.

What began as an attempt to understand what the Arduino setup() and loop() functions were quietly doing has, by this point, turned into the ability to design that structure directly: to decide how many tasks a problem needs, how they should talk to each other, how a device should behave when it wakes from sleep, and how it should recover when something goes wrong rather than simply resetting and hoping. That ability travels well beyond any single board or any single project. It is the foundation for building firmware that behaves predictably not because nothing ever goes wrong, but because the system was built to notice when something does, and to keep going anyway.
